2500 Series Chisel Plow
The 2500 Series Chisel Plow from Wil-Rich integrates a deeper frame front to rear in a refined design, compared to its predecessor. The deep frame utilizes four ranks to improve the flow of heavy residue from today’s higher yielding crops. The 2500 Series not only utilizes a deep frame, but also, 3/8″ (9 mm) thick steel for even more strength. This makes it one of the strongest tillage implements on the market.
The Wil-Rich 2500 Series Chisel Plow is available in 12 or 15-inch (30.5 or 38.1 cm) shank spacing and with trip pressure options of 650 lbs. (295 kg) or 1,000 lbs. (454 kg). Select sizes are also available with either a level lift or floating hitch. This allows it to be built to accommodate the specific needs of your operation.
Specifications
Main Frame
- 13′ (4 m) main frame
- 4-bar welded frame
- 4 x 4″ (10.2 x 10.2 cm) tubular frame
- 140″ (355.6 cm) front to back
- Over-center folding wings
Gauge Wheels

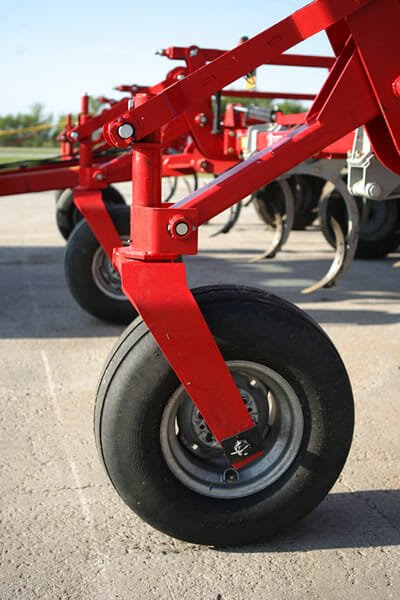

- Hydraulically controlled on floating hitch units (31×13.5-15)
- Ratchet adjust on level lift units (9.5Lx15)
Safety Equipment
- Safety chain
- Transport warning light package
Hydraulics
- Single-point depth control
- Two main lift cylinders
- One wing transport fold cylinder on 3′ (0.91 m) and 6′ (1.83 m) wing models
- Two wing transport fold cylinders on 9′ (2.7 m) and 12′ (3.7 m) wing models
Hitch
- Level lift only on 13′-29′ (4-8.8 m) models
- Level lift or floating hitch available on 31′ (9.4 m) and larger
- Cat. IV tongue for 2″ (5 cm) diameter pin for 2530 series or Cat. V tongue for 2¾” (7 cm) diameter pin for 2550 series
- Screw type hitch jack
Shank Spacing
- 12″ (30.5 cm) or 15″ (38.1 cm) spacing

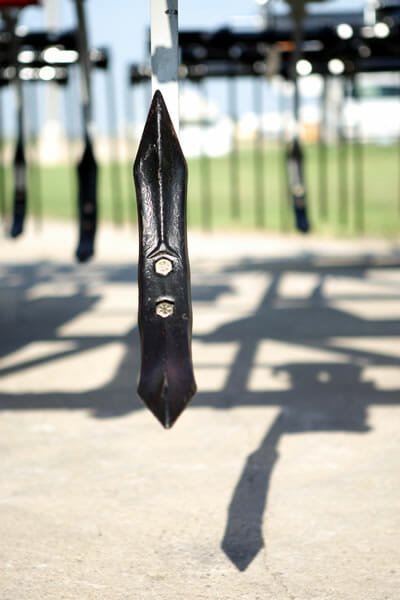

Shank Options

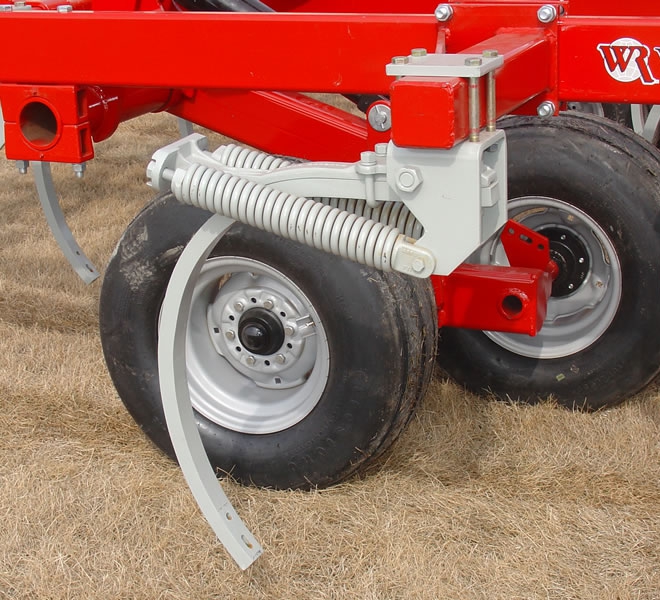

- 650-lb. (295 kg) extension spring trip assemblies with 2 x 1 ¼ x 32″ (5.1 x 3.2 x 81.3 cm) shank at 54° approach

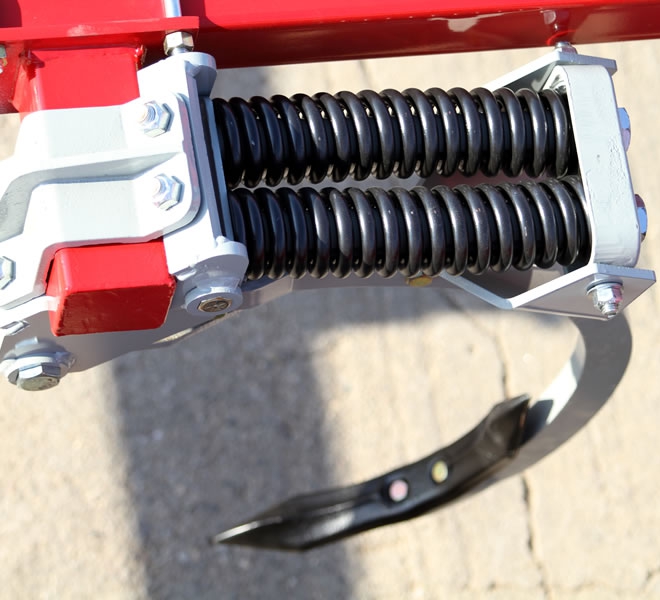

- 1,000-lb. (454 kg) compression spring trip assemblies with 1 ¼ x 2 x 30″ (3.2 x 5.1 x 76.2 cm) on-edge shank at 50° approach

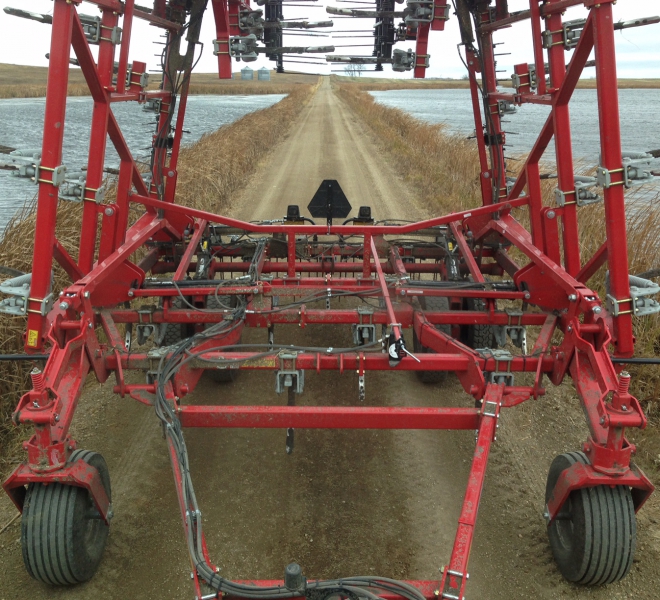

Gallery
General Information, Weights and Dimensions
2510 Series
Rigid Model – with tandem axle (Level Lift Hitch)
Model # |
Working Width 12″ (30.5 cm) |
Working Width 15″ (38.1 cm) |
No. of Shanks 12″/15″ |
Inner Wing |
Approx. Trans. Width |
Approx. Trans. Height |
Approx. Weight (LBS.) |
Approx. Power Req’d |
|---|---|---|---|---|---|---|---|---|
| 2510 CPR 13 | 13′ (4 m) |
12’6″ (3.8 m) |
13/10 | N/A | 13’6″ (4.1 m) |
6’8″ (2.1 m) |
5,540 (2,513 kg) |
100-156 HP |
| 2510 CPR 13-15 | 15′ (4.6 m) |
15′ (4.6 m) |
15/12 | N/A | 14’8″ (4.5 m) |
6’8″ (2.1 m) |
5,817 (2,639 kg) |
120-180 HP |
| 2510 CPR 13-17 | 17′ (5.2 m) |
17’6″ (5.3 m) |
17/14 | N/A | 17’1″ (5.2 m) |
6’8″ (2.1 m) |
6,202 (2,813 kg) |
140-204 HP |
2530 Series
Folding Model with 3-foot (.9 m) wings and tandem axle (Level Lift Hitch)
Model # |
Working Width 12″ (30.5 cm) |
Working Width 15″ (38.1 cm) |
No. of Shanks 12″/15″ |
Inner Wing |
Approx. Trans. Width |
Approx. Trans. Height |
Approx. Weight (LBS.) |
Approx. Power Req’d |
|---|---|---|---|---|---|---|---|---|
| 2530 CPW 19 | 19′ (5.8 m) |
N/A | 19/- | 3′ (.9 m) |
14’1″ (4.3 m) |
9’9″ (3 m) |
7,393 (3,353 kg) |
190-228 HP |
| 2530 CPW 19-21 | 21′ (6.4 m) |
20′ (6.1 m) |
21/16 | 3′ (.9 m) |
14’1″ (4.3 m) |
9’11” (3 m) |
7,671 (3,480 kg) |
160-252 HP |
| 2530 CPW 19-23 | 23′ (7 m) |
22’6″ (6.9 m) |
23/18 | 3′ (.9 m) |
14’1″ (4.3 m) |
10’1″ (3.1 m) |
8,055 (3,654 kg) |
180-276 HP |
2530 Series
Folding Model with 6-foot wings (2 m) and tandem axle (Level Lift Hitch)
Model # |
Working Width 12″ |
Working Width 15″ |
No. of Shanks 12″/15″ |
Inner Wing |
Approx. Trans. Width |
Approx. Trans. Height |
Approx. Weight (LBS.) |
Approx. Power Req’d |
|---|---|---|---|---|---|---|---|---|
| 2530 CPW 25 | 25′ (7.6 m) |
25′ (7.6 m) |
25/20 | 6′ (1.8 m) |
14’1″ (4.3 m) |
11’1″ (3.4 m) |
9,810 (4,450 kg) |
200-300 HP |
| 2530 CPW 25-27 | 27′ (8.2 m) |
27’6″ (8.4 m) |
27/22 | 6′ (1.8 m) |
14’1″ (4.3 m) |
11’5″ (3.5 m) |
10,088 (4,576 kg) |
220-324 HP |
| 2530 CPW 25-29 | 29′ (8.8 m) |
30′ (9.1 m) |
29/24 | 6′ (1.8 m) |
14’1″ (4.3 m) |
11’8″ (3.6 m) |
10,472 (4,750 kg) |
240-348 HP |
2530 Series
Folding Model with 9-foot (3 m) wings and tandem axle (Level Lift or Floating Hitch)
Model # |
Working Width 12″ |
Working Width 15″ |
No. of Shanks 12″/15″ |
Inner/outer Wing |
Approx. Trans. Width |
Approx. Trans. Height |
Approx. Weight (LBS.) Level Lift Hitch |
Approx. Weight (LBS.) Floating Lift Hitch |
Approx. Power Req’d |
|---|---|---|---|---|---|---|---|---|---|
| 2530 CPW 31 | 31′ (9.4 m) |
30′ (9.1 m) |
31/24 | 9’/0′ (2.7 m/0 m) |
19’2″ (5.8 m) |
12’6″ (3.8 m) |
15,311 (6,945 kg) |
17,004 (7,713 kg) |
240-372 HP |
| 2530 CPW31-33 | 33′ (10 m) |
32’6″ (10 m) |
33/26 | 9’/0′ (2.7 m/0 m) |
19’2″ (5.8 m) |
13’6″ (4.1 m) |
15,588 (7,071 kg) |
17,281 (7,839 kg) |
260-396 HP |
| 2530 CPW 31-35 | 35′ (11 m) |
35′ (11 m) |
35/28 | 9’/0′ (2.7 m/0 m) |
19’2″ (5.8 m) |
14’6″ (4.4 m) |
15,973 (7,245 kg) |
17,666 (8,013 kg) |
280-420 HP |
| 2530 CPW 31-37 | 37′ (11.3 m) |
37’6″ (11.4 m) |
37/30 | 9’/3′ (2.7 m/.9 m) |
19’2″ (5.8 m) |
12’6″ (3.8 m) |
17,249 (7,824 kg) |
18,942 (8,592 kg) |
300-444 HP |
| 2530 CPW 31-39 | 39′ (11.9 m) |
40′ (12.2 m) |
39/32 | 9’/3′ (2.7 m/.9 m) |
19’2″ (5.8 m) |
12’6″ (3.8 m) |
17,526 (7,950 kg) |
19,219 (8,718 kg) |
320-468 HP |
| 2530 CPW 31-41 | 41′ (12.5 m) |
42’6″ (13 m) |
41/34 | 9’/3′ (2.7 m/.9 m) |
19’2″ (5.8 m) |
12’6″ (3.8 m) |
17,911 (8,124 kg) |
19,604 (8,892 kg) |
340-492 HP |
2530 Series
Folding Model with 12-foot (4 m) wings and tandem axle (Level Lift or Floating Hitch)
Model # |
Working Width 12″ |
Working Width 15″ |
No. of Shanks 12″/15″ |
Inner/outer Wing |
Approx. Trans. Width |
Approx. Trans. Height |
Approx. Weight (LBS.) Level Lift Hitch |
Approx. Weight (LBS.) Floating Lift Hitch |
Approx. Power Req’d |
|---|---|---|---|---|---|---|---|---|---|
| 2530 CPW 37 | 37′ (11.3 m) |
37’6″ (11.4 m) |
37/30 | 12’/0′ (3.7 m/.9 m) | 19’2″ (5.8 m) |
15’6″ (4.7 m) |
16,557 (7,510 kg) |
18,250 (8,278 kg) |
300-444 HP |
| 2530 CPW 37-39 | 39′ (11.9 m) |
40′ (12.2 m) |
39/32 | 12’/0′ (3.7 m/.9 m) | 19’2″ (5.8 m) |
16’6″ (5 m) |
16,835 (7,636 kg) |
18,528 (8,404 kg) |
320-468 HP |
| 2530 CPW 37-43 | 43′ (13.1 m) |
42’6″ (13 m) |
43/34 | 12’/3′ (3.7 m/.9 m) | 19’2″ (5.8 m) |
16’6″ (5 m) |
18,545 (8,412 kg) |
20,238 (9,180 kg) |
340-516 HP |
| 2530 CPW 37-45 | 45′ (13.7 m) |
45′ (13.7 m) |
45/36 | 12’/3′ (3.7 m/.9 m) | 19’2″ (5.8 m) |
16’6″ (5 m) |
18,822 (8,538 kg) |
20,515 (9,305 kg) |
360-540 HP |
| 2530 CPW 37-47 | 47′ (14.3 m) |
47’6″ (14.5 m) |
47/38 | 12’/3′ (3.7 m/.9 m) | 19’2″ (5.8 m) |
16’6″ (5 m) |
19,206 (8,712 kg) |
20,899 (9,480 kg) |
380-564 HP |
2550 Series
Folding Model with 6-foot (2 m)(49-50-foot models) or 9-foot (3 m)(55-60-foot models) wings and tandem axle (Floating Hitch)
Model # |
Working Width 12″ |
Working Width 15″ |
No. of Shanks 12″/15″ |
Inner/outer Wing |
Approx. Trans. Width |
Approx. Trans. Height |
Approx. Weight (LBS.) |
Approx. Power Req’d |
|---|---|---|---|---|---|---|---|---|
| 2550 CPW 49 | 49′ (15 m) |
N/A | 49/N/A | 12’/6′ (3.7 m/1.8 m) |
19’2″ (5.8 m) |
17’4″ (5.3 m) |
26,825 (12,168 kg) |
490-588 HP |
| 2550 CPW 49-51 | 51′ (15.5 m) |
50′ (15.2 m) |
51/40 | 12’/6′ (3.7 m/ 1.8 m) |
19’2″ (5.8 m) |
17’4″ (5.3 m) |
27,102 (12,293 kg) |
400-600+ HP |
| 2550 CPW 55 | 55′ (16.8 m) |
55′ (16.8 m) |
55/44 | 12’/9′ (3.7 m/ 2.7 m) |
19’2″ (5.8 m) |
17’4″ (5.3 m) |
27,919 (12,664 kg) |
400-600+ HP |
| 2550 CPW 55-59 | 59′ (18 m) |
60′ (18.3 m) |
59/48 | 12’/9′ (3.7 m/ 2.7 m) |
19’2″ (5.8 m) |
17’4″ (5.3 m) |
28,581 (12,964 kg) |
480-600+ HP |
Note: approximate weight = base weight + 12″ shank spring (number of shanks x 650 pound extension springs)
