SoilPro 513
SoilPro 513

SoilPro 513

The SoilPro 513 Disc Ripper from Wil-Rich is designed to work in a variety of soil conditions. The SoilPro 513 performs primary tillage, leaving a smooth, uniform surface ideal for seedbed preparation.

The SoilPro 513 is available in cutting widths from 12.5 to 26 ft (3.8 – 7.9 m). The SoilPro 513 has industry-leading, large-diameter 28 in (71 cm) disc blades on two-rank individual C-spring disc blade mounting to bury and mix residue for quick decomposition. The 3,500 lb (1,588 kg) trip pressure ripper shanks penetrate even the toughest soil.

Features

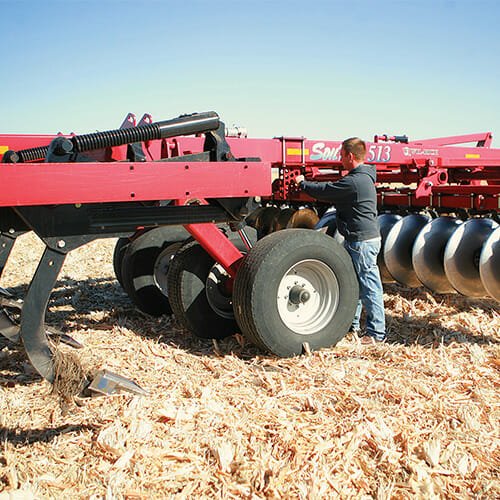

SoilPro 513 Heavy-Duty Frame
Heavy-duty frame

Heavy-duty 4 x 8 in (10 x 20 cm) frame adds additional weight to keep the tool in the ground and ripping through even the heaviest residue.

SoilPro 513 Rank Spacing
Rank spacing

Two ranks of shanks are 55 in (145 cm) apart; the closest shanks are 48 in (122 cm) apart on the rank, promoting excellent crop residue flow.

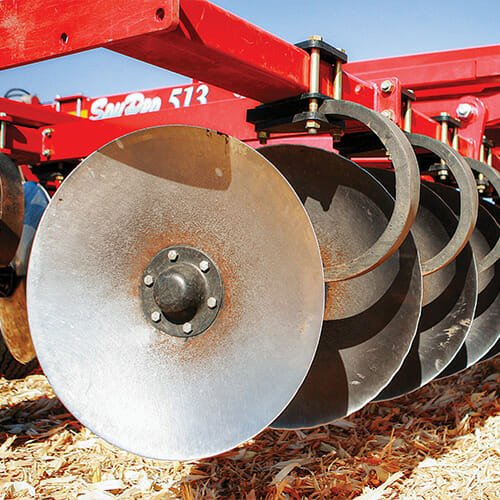

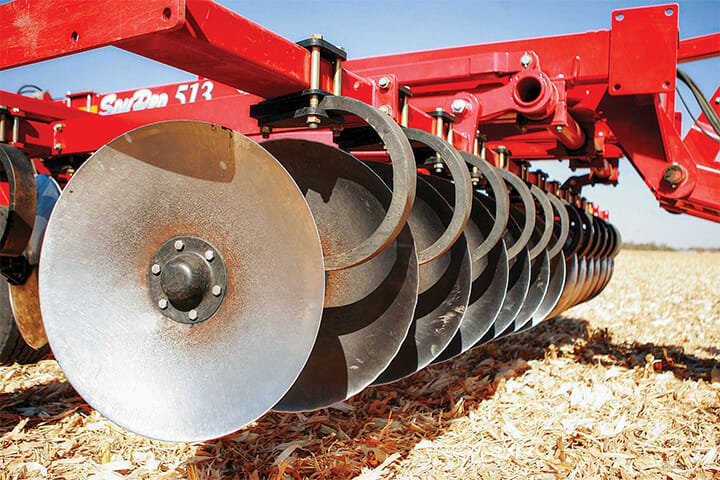

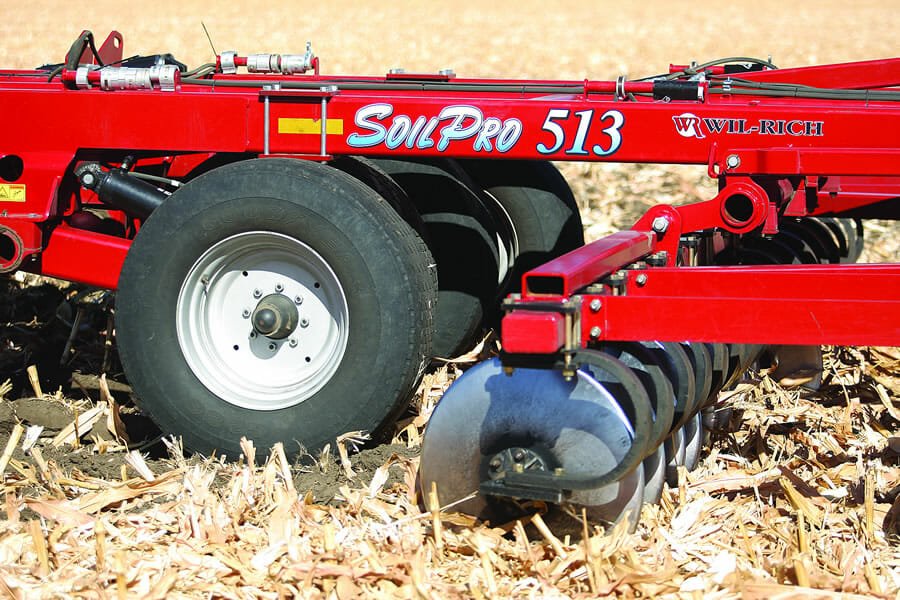

SoilPro 513 Disc Blades
Disc blades

Individually mounted C-spring, 28 in (71 cm) disc blades have an effective spacing of 19 in (48 cm).

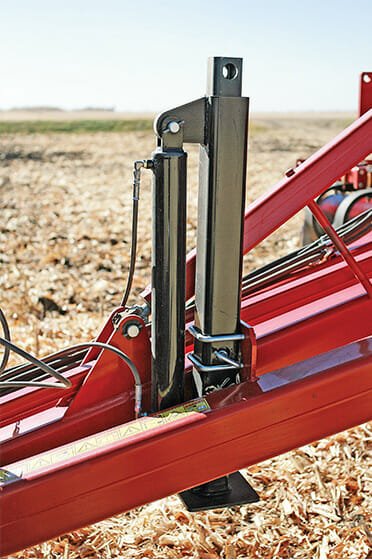

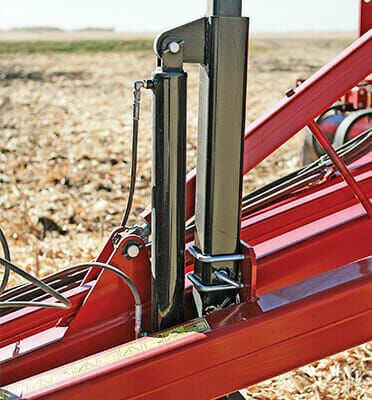

SoilPro 513 Hitch
Hitch

Hydraulic jack is standard.

Features

Frame
  • 4 x 8 in (10 x 20 cm) tubular frame
  • 5 x 7 in (13 x 18 cm) tubular hitch
  • Level lift tongue
  • Adjustable drawbar height
Hydraulics – Rigid Units
  • Two main lift cylinders 4.5 x 12 in (11 x 30 cm)
  • Two disc lift cylinders 4 x 8 in (10 x 20 cm)
Hydraulics – Folding Units
  • Two main lift cylinders 5 x 12 in (13 x 30 cm)
  • Two wing lift cylinders 4.5 x 12 in (11 x 30 cm)
  • Two main disc lift cylinders 4 x 8 in (10 x 20 cm)
  • Two wing disc lift cylinders 3.75 x 8 in (10 x 20 cm)
  • Four fold cylinders 4 x 36 in (10 x 91 cm)
Hitch
  • Visual gauge of relative disc depth
  • Level lift hitch
  • Fabricated Steel Cat. V tongue hitch for 2.75 in (7 cm) diameter pin
Jack
  • Hydraulic hitch jack
Wheels
  • 385/65R 22.50/8-bolt new or used tires
Axle
  • Walking tandem beam axles on main frames and wings
Shank Parabolic
  • 1.25 in (3 cm) high-strength, abrasion-resistant steel with chromium carbide shin guards
  • Spring reset shanks
  • Two trip extension springs
  • Trip height of 18 in (46 cm)
  • Working depth of 14 in (36 cm) maximum
  • 3,500 lbs (1,588 kg) max. trip pressure
  • Shank spacing 24 or 30 in (61 or 76 cm)
  • Transport height clearance 12 in (30 cm)
Disc
  • Smooth blades 28 x 5/16 in (71 x .8 cm)
  • 19 in (48 cm) blade spacing, 9.5 in width (24 cm) effective cut
  • Hydraulic depth control
  • Individual disc blades
  • C-spring mounted
  • 18-degree cutting angle
Working Depth
  • Shanks 0 to 14 in (0 – 36 cm)
  • Discs 0 to 8 in (0 – 20 cm)
Operating Speed
  • 4 to 6 mph (6 – 10 kph)
Safety Equipment
  • Safety chain
  • Transport warning lights
  • Mechanical transport locks
  • Slow moving vehicle sign

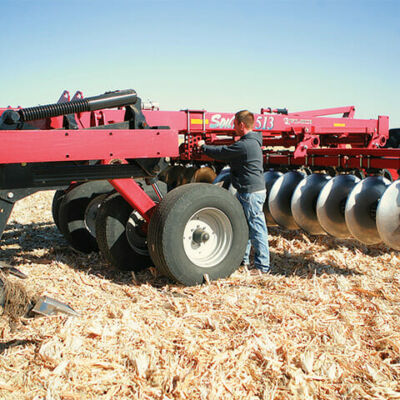

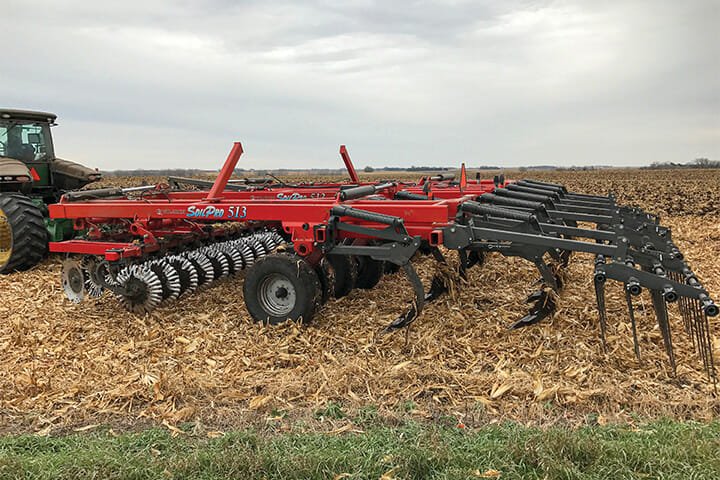

Gallery

Specifications

Rigid Models
Model
Number of shanks
Number of blades
Working width, ft (m)
Shank spacing, in (cm)
Transport width, ft (m)
Transport height, ft (m)
Transport length, ft (m)
Weight, lbs (kg)
Horsepower requirement
5-30 SP 513 5 18 12.5 (3.8) 30 (76) 16.2 (4.9) 7 (2.1) 33.4 (10.2) 17,180 (7,793) 300-400
7-24 SP 513 7 18 14 (4.3) 24 (60) 16.2 (4.9) 7 (2.1) 33.4 (10.2) 18,061 (8,192) 300-450
9-24 SP 513 9 24 18 (5.5) 24(60) 21.25 (6.5) 7 (2.1) 33.4 (10.2) 21,143 (9,590) 350-450
Folding Models
Model
Number of shanks
Number of blades
Working width, ft (m)
Shank spacing, in (cm)
Transport width, ft (m)
Transport height, ft (m)
Transport length, ft (m)
Weight, lbs (kg)
Horsepower requirement
9-24 SP 513 9 24 18 (5.5) 24 (60) 15.75 (4.8) 11.8 (3.6) 33.4 (10.2) 22,567 (10,236) 350-450
11-24 SP 513 11 30 22 (6.7) 24 (60) 19.25 (5.9) 13.7 (4.2) 33.4 (10.2) 32,280 (14,642) 450-550
13-24 SP 513 13 34 26 (7.9) 24 (60) 15.75 (4.8) 19.25 (5.9) 33.4 (10.2) 33,688 (15,281) 500+

*Approx weight: base weight + tire group

**Adding harrows to a unit may increase the transport width and/or height of the unit.
