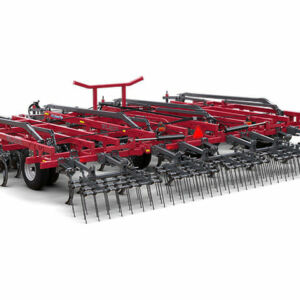

483 долото Pro

483 долото Pro

Engineered to loosen soil, bury heavy trash, and properly size clods for a smoother field finish, the Wil-Rich 483 Chisel Pro is the ideal tool for today’s high yielding crops.

Built with 24 in (61 cm) concave razor blades and 1,400 lb (635 kg) trip pressure shanks, the 483 Chisel Pro gives the soil mixing of a ripper and the width of a chisel plow. Because it works at a maximum depth of 10 in (25 cm), the 483 Chisel Pro requires less horsepower than a disc ripper, allowing for wider working widths and more productivity.

483 Chisel Pro Shanks
Стойки

Four ranks of 1,400 lb (635 kg) trips with on-edge chisel shanks give additional digging and mixing after the discs. 60 in (152 cm) spacing between shanks on each of the ranks allows for excellent trash flow through the tool. The overall 15 in (38 cm) spacing aids in a smoother field finish than the typical wider shank spacing of disc rippers.

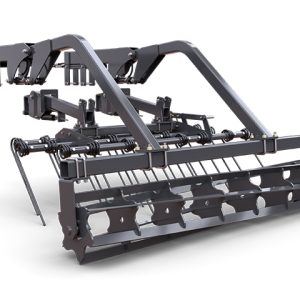

483 Chisel Pro Leveling Attachments
Leveling attachments

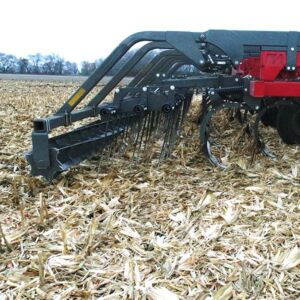

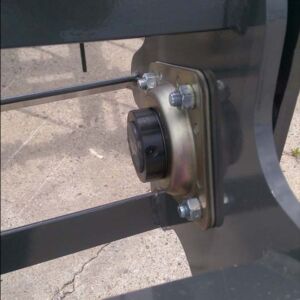

Optional leveling attachments of a three-bar harrow, four-bar harrow, or three-bar harrow with hydraulic rolling basket with adjustable down pressure leave a smooth field finish for spring seedbed preparation.

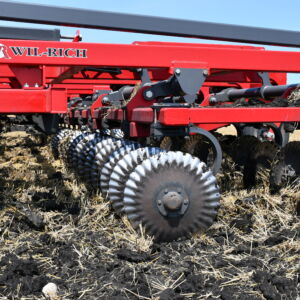

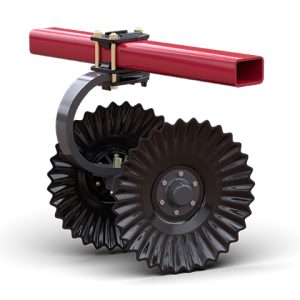

483 Chisel Pro Discs
Диски

Two rows of double-mounted discs can be set for desired depth independent of the shanks. Concave razor blades are 24 in (61 cm) in diameter and spaced 15 in (38 cm) apart. The second rank of blades is offset from the first for effective spacing of 7-1/2 in (19 cm).

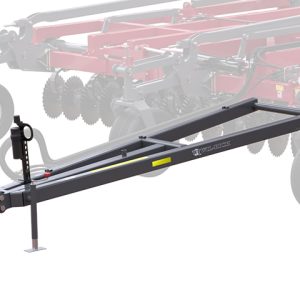

483 Chisel Pro Floating-Hitch
Плавающая сцепка

The floating hitch on the 483 Chisel Pro provides exceptional depth control and ground following capability.

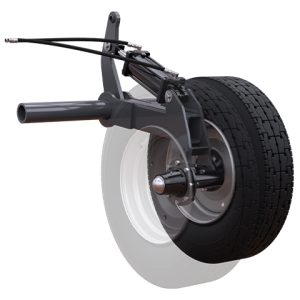

483 Chisel Pro Walking Tandums
Walking tandems

22-1/2 in (56 cm) walking tandems provide better flotation and easier transport.

Особенности и технические характеристики

Рама
  • Under frame clearance: 32 in (81 cm)
Колеса/шины
  • Walking tandem wheels: 8-bolt 10 x 22.5 in (25 x 57 cm) with 12R22.5×8.25 truck tires
  • Caster wheels: 6-bolt 10 in (25 cm) with 31×13.5-15 12-ply gauge wheels
Прицепное устройство
  • Плавающая сцепка
  • Тип извлечения
  • Cat. IV & V options for 2 in (5 cm) & 2.75 in (7 cm) diameter pins
Диски

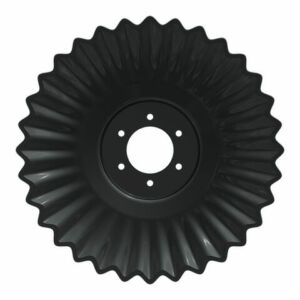

  • 24 in (61 cm) diameter serrated concave
  • С-образные подпружиненные стойки.
  • 18-degree cutting angle
  • 7.5 in (19 cm) nominal spacing
Стойки
  • Heavy-duty 1,400 lb (635 kg) trips
  • 15 in (38 cm) overall spacing cushion trip mounted at 50º approach
Рабочая глубина
  • Discs: 6 in (15 cm) maximum
  • Shanks: 10 in (25 cm) maximum
Дополнительное оборудование
  • 3-bar harrow
  • 4-bar harrow
  • 3-bar harrow/hydraulic basket

Галерея изображений

Технические характеристики

Rigid Models

Level Lift or Floating Hitch



Модель
Number of shanks
Number of blades
Working width, ft (m)
Shank spacing, in (cm)
Transport width, ft (m)
Transport height, ft (m)
Transport length, ft (m)
Weight, lbs (kg)
Horsepower requirement
483-16132416.25 (5)15 (38)17.5 (2.3)6 (1.8)35.3 (10.8)15,469 (7,017)240-360
483-19153218.75 (5.7 m)15 (38)20 (6)6 (1.8)35.3 (10.8)16,981 (7,702)300-450

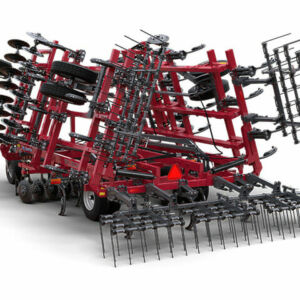

Со складывающейся рамой

Level Lift or Floating Hitch



Модель
Number of shanks
Number of blades
Working width, ft (m)
Shank spacing, in (cm)
Transport width, ft (m)
Transport height, ft (m)
Transport length, ft (m)
Weight, lbs (kg)
Horsepower requirement
483-24194025 (7.6)15 (38)20 (6)12 (3.7)35.3 (10.8)27,157 (12,318)380-570
483-29234828.75 (8.8)15 (38)20 (6)13 (4)35.3 (10.8)29,879 (13,553)460-620+
483-34275633.75 (10.3)15 (38)20 (6)15 (4.6)35.3 (10.8)33,103 (15,015)540-620+

*Approx weight: (number of shanks x shank weight) + tire group weight + base weight
