Seedbed Finisher

Wil-Rich Seedbed Finisher

Seedbed Finisher

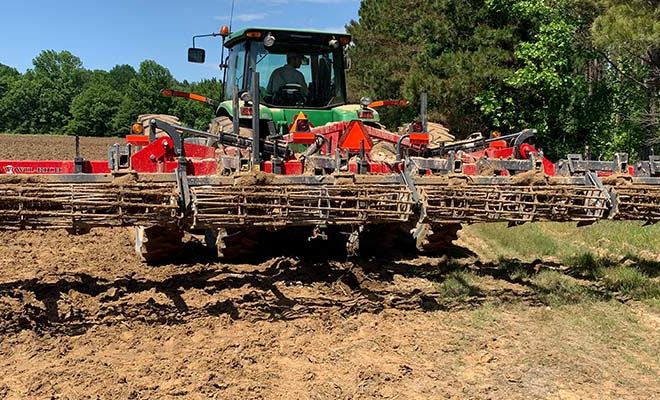

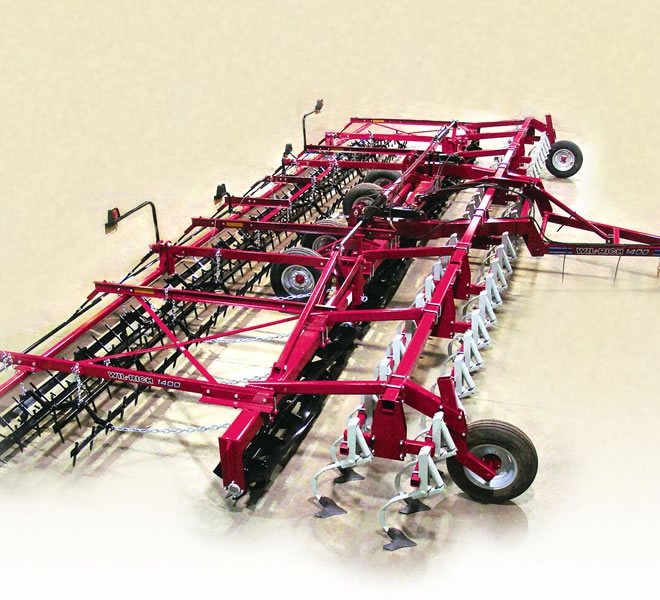

The Wil-Rich 1400 Seedbed Finisher is the perfect tool for creating a seedbed in the Mississippi Delta. This do-all machine penetrates, mixes, smooths, and firms the ground, preparing your fields for even emergence of delicate crops.

By preparing the soil correctly, a planter can run right behind the Wil-Rich 1400 Seedbed Finisher, preserving moisture and extending the planting window. Built for both raised seedbeds and flat or rolling ground, the Wil-Rich 1400 Seedbed Finisher features the heaviest cutter reel to penetrate the ground.

Seedbed Finisher Shanks

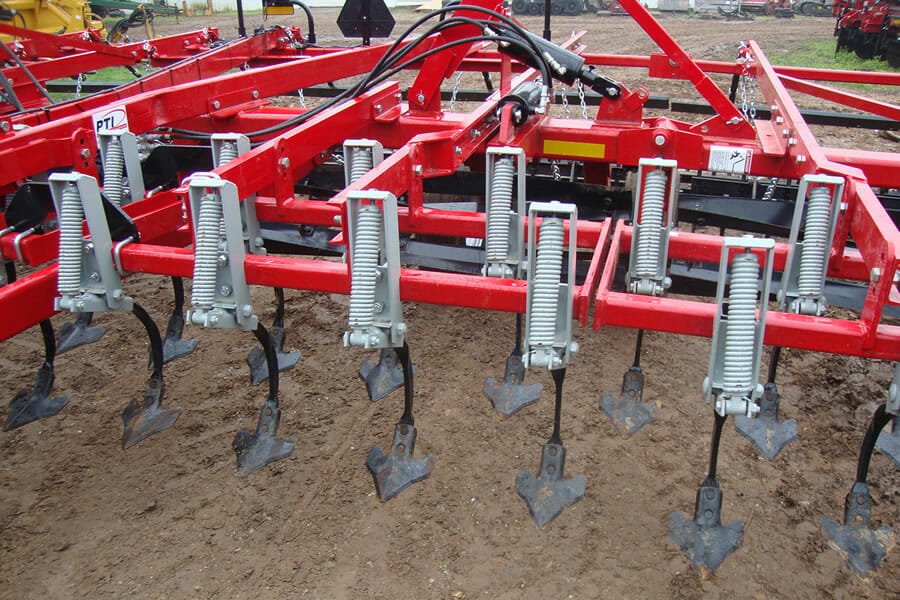

Shanks

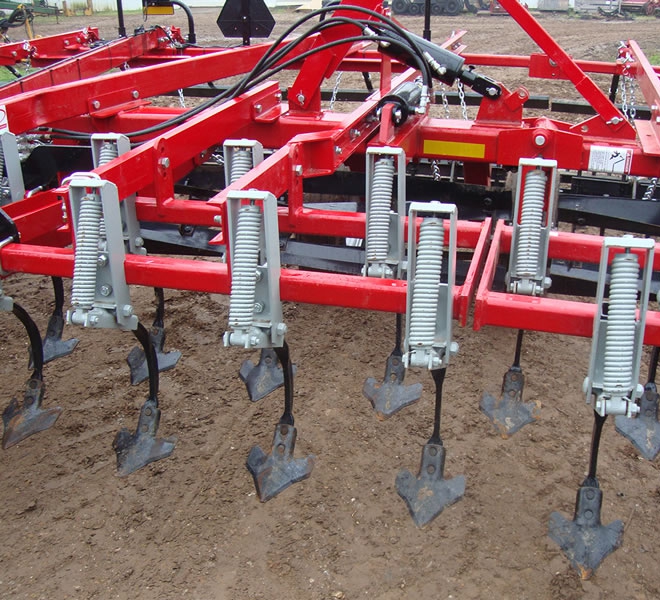

Optional shanks on the Wil-Rich 1400 Seedbed Finisher penetrate the ground to break up the soil. The shank works well on flat ground.

Seedbed Finisher Cutting Reel

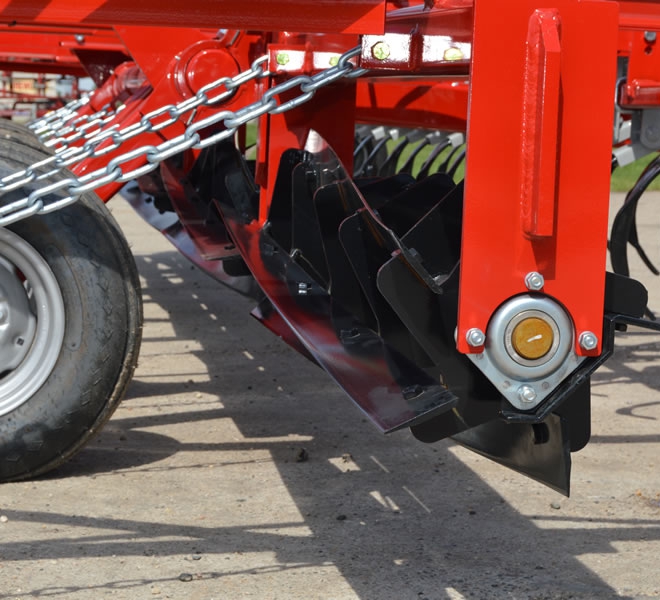

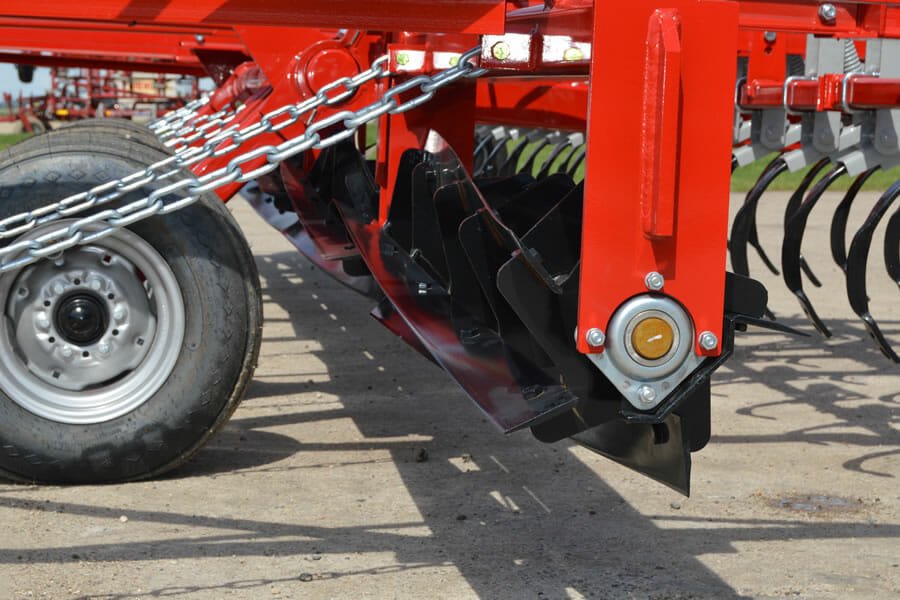

CUTTING REEL

The cutting reel pulverizes the ground to mix soil and incorporate chemical accurately at the required depth. This balanced and heavy cutter has self-aligning bearings.

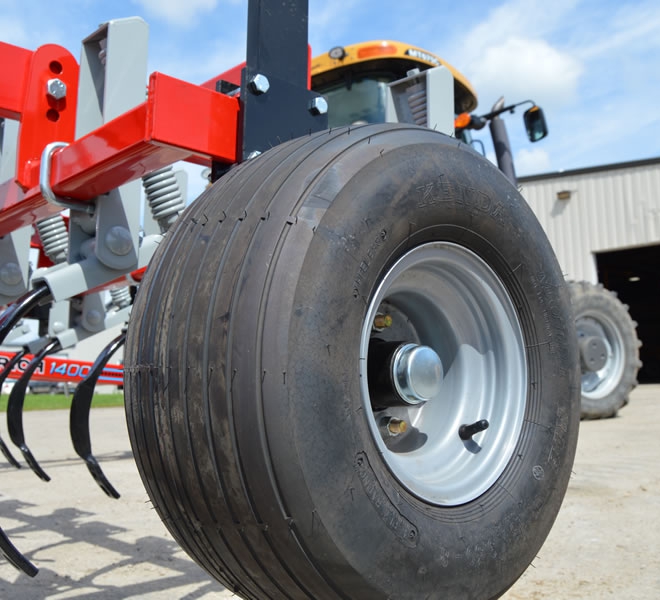

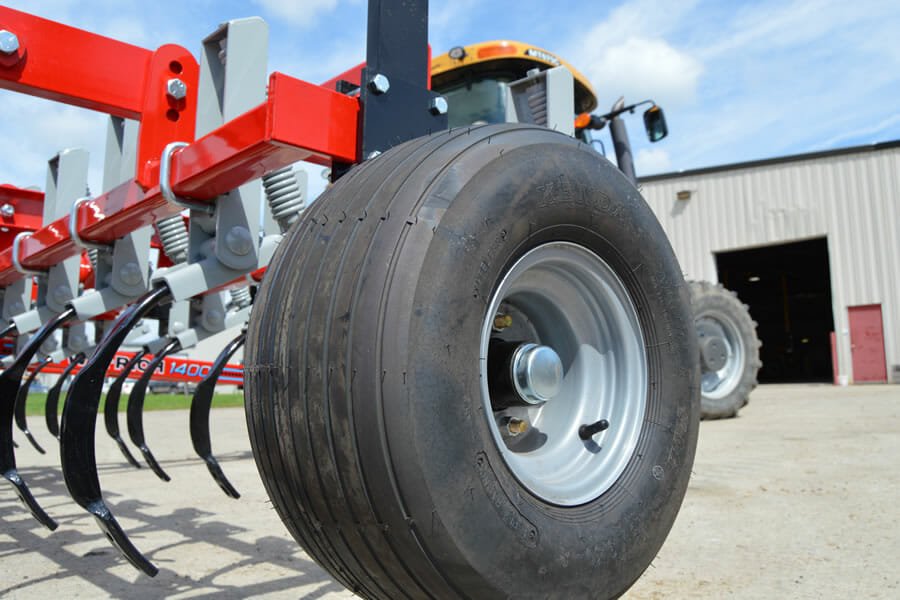

Seedbed Finisher Gauge wheels
GAUGE WHEELS

Gauge wheels control the depth of the Wil-Rich 1400 Seedbed Finisher in rolling ground.

Seedbed Finisher Spike Harrow

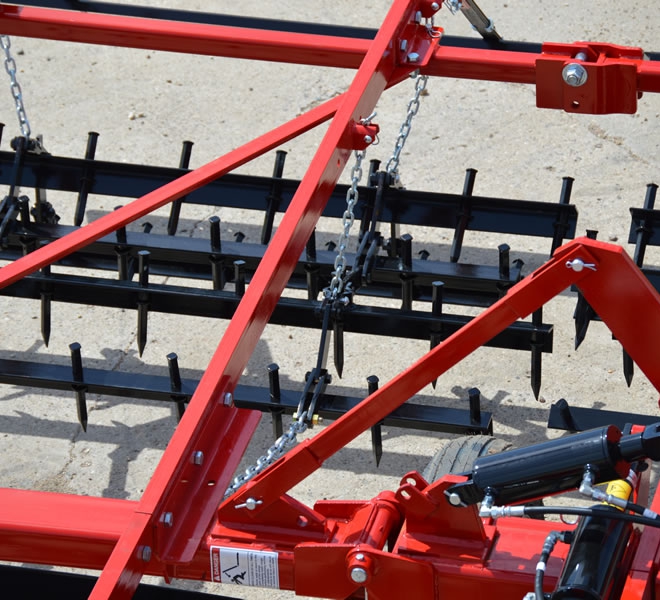

spike harrow

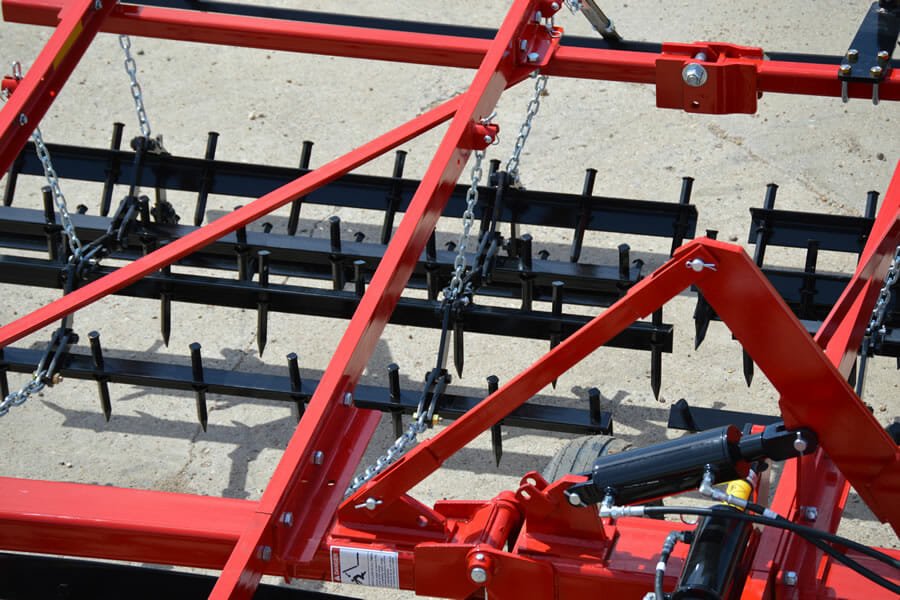

The spike harrow drags the soil and breaks up clods to smooth the ground.

Seedbed Finisher Bearing Guard

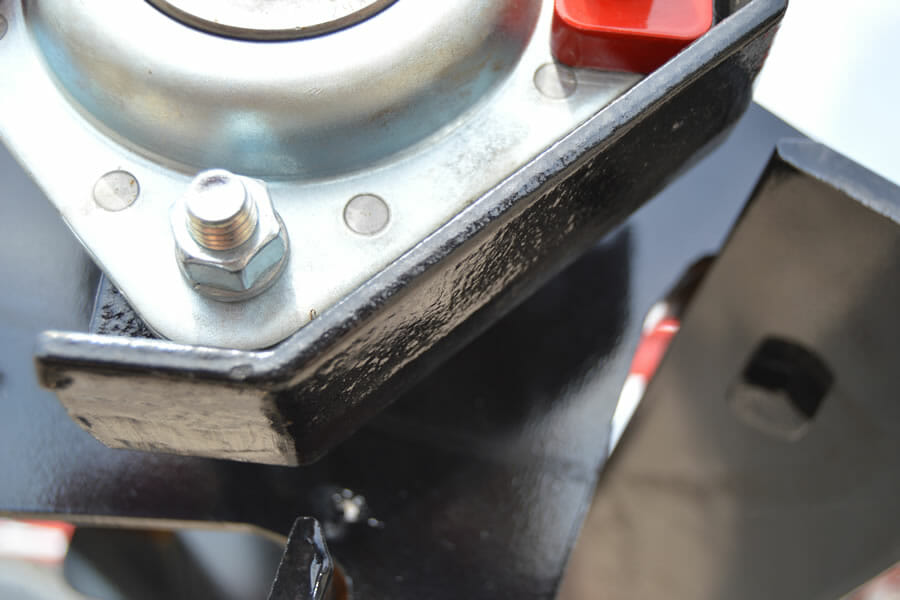

BEARING GUARD

Bearing guards protect the bearings from debris.

Features

main frame
  • 25 – 39 ft (7.6 – 12 m) working width
  • Adjustable wing hinges
  • Heavy duty 7 x 7 in (17.8 x 17.8 cm) and 6 x 6 in (15.24 x 15.24 cm) frame
  • 4.5 ft (1.4 m) ground transport axles tube supported by large, lubricated mounts
  • Leveling crank with lube fittings and thrust bearings
WHEELS
  • Four dual walking wheels
  • 11L x 15 12-ply on 15 x 8 6-bolt rims
HITCH
  • Pull type 8-row: reversible for straight or hammer strap type drawbars
  • Pull type 12-row: Cat. IV tongue for 2 in (5 cm) diameter pin
  • Mounted 8-row: 3-pt. hitch adjustable to Cat. II or III, or quick attach coupler
  • Mounted 12-row: 3-pt. hitch adjustable to Cat. III
HYDRAULICS
  • 2 main lift cylinders
  • 2 wing fold cylinders
  • Complete with hose and fittings
WHEEL
  • 5 spiral cutter bars per reel
  • 3/8 x 4 in (1 x 10.4 cm) cutter bar with plow share steel
  • Triple lip sealed bearings with lube fitting
  • Lube fitting guard protects from dirt and residue
SAFETY EQUIPMENT
  • Screw jack
  • Safety chain
  • Transport warning lights

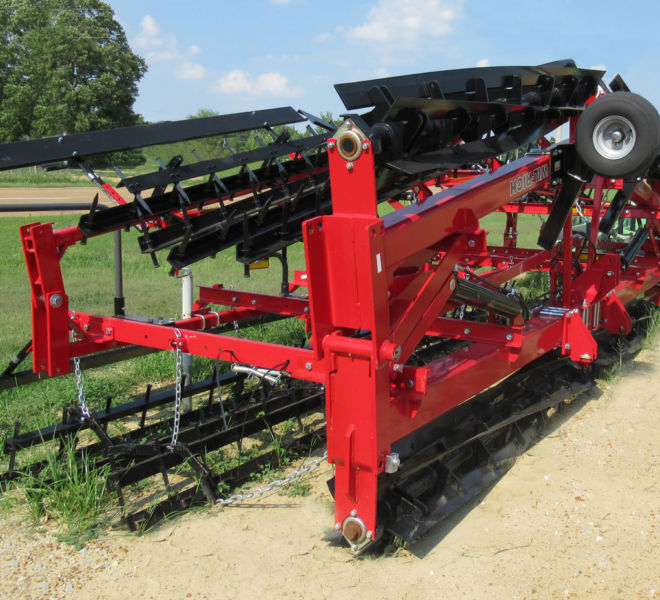

Gallery

Specifications

Model 1400/8 Row – Non-folding with 36″ to 40″ (91.3 to 101.6 cm) Row Spacing

Model #
Number of Rows
Row spacing, in (cm)
Working Width, ft (m)
Cutter Reel Width, ft (m)

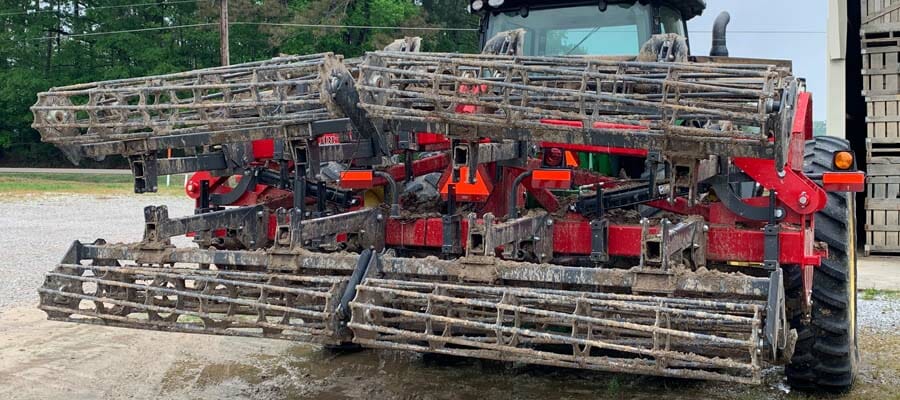

Transport Width, ft (m)
Transport Height, ft (m)
Weight, lbs (kg)
Horsepower requirement
SBF-1400-8R36-40836/40 (91.3/101.6)25.75 (7.8)6 (1.8)16.5 (5)9.5 (3)13,536 (6,140)120

Model 1400/12 Row – Folding with 30″ (76.2 cm) Row Spacing

Model #
Number of Rows
Row spacing, in (cm)
Working Width, ft (m)
Cutter Reel Width, ft (m)
Transport Width, ft (m)
Transport Height, ft (m)
Weight, lbs (kg)
Horsepower requirement
SBF-1400-12R301230 (76.2)29.25 (9)7 (2)19.5 (6)11.5 (3.5)13,283 (6,025)160

Model 1400/12 Row – Folding with 40″ (101.6 cm) Row Spacing

Model #
Number of Rows
Row spacing, in (cm)
Working Width, ft (m)
Cutter Reel Width, ft (m)
Transport Width, ft (m)
Transport Height, ft (m)
Weight, lbs (kg)
Horsepower requirement
SBF-1400-12R401240 (101.6)39.25 (12)9 (2.75)25 (7.6)14 (4.3)16,231 (7,362)200

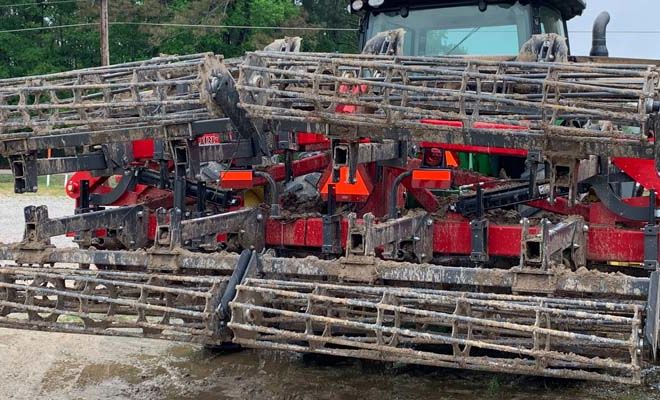

Model 1403/8 Row – Folding with 36″ to 40″ (91.3 to 101.6 cm) Row Spacing – 3-point mount

Model #
Number of Rows
Row spacing, in (cm)
Working Width, ft (m)
Cutter Reel Width, ft (m)
Transport Width, ft (m)
Transport Height, ft (m)
Weight, lbs (kg)
Horsepower requirement
SBF-1403-8R36-40836/40 (91.3/101.6)25.75 (7.8)6 (2)17.75 (5.4)9.5 (3)5,193 (2,356)120

Model 1403/12 Row – Folding with 40″ (101.6 cm) Row Spacing – 3-point mount

Model #
Number of Rows
Row spacing, in (cm)
Working Width, ft (m)
Cutter Reel Width, ft (m)
Transport Width, ft (m)
Transport Height, ft (m)
Weight, lbs (kg)
Horsepower requirement
SBF-1403-12R401240 (101.6)39.25 (12)9 (2.75)20.75 (6.3)8 (2.4)9,137 (4,144)190
