Wil-Rich cultivators are the industry leaders for strength and performance. Designed for the demands of today’s agriculture, Wil-Rich focuses on its customers – designing tillage tools to meet farmers’ requirements.

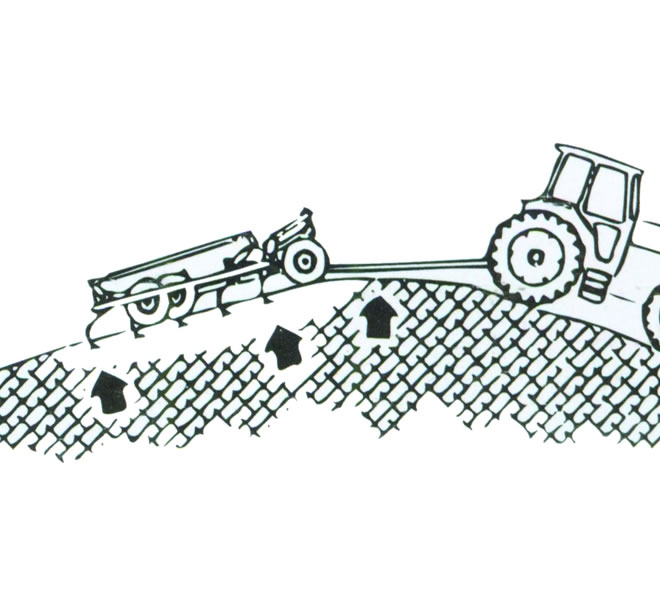

The Wil-Rich QX2 field cultivator is equipped with a floating hitch to provide accurate depth control in uneven terrain.  The QX2 also utilizes optional 31 x 13.5 x 15 flotation tires to enhance flotation in all field conditions.

Base Specifications

Main Frame
  • 13′ (3.96 m) main frame
  • 6-bar bolted frame
  • 3 x 4″ (8 x 10 cm) tubular frame
  • 35″ (89 cm) between five ranks
  • 140″ (356 cm) front to back

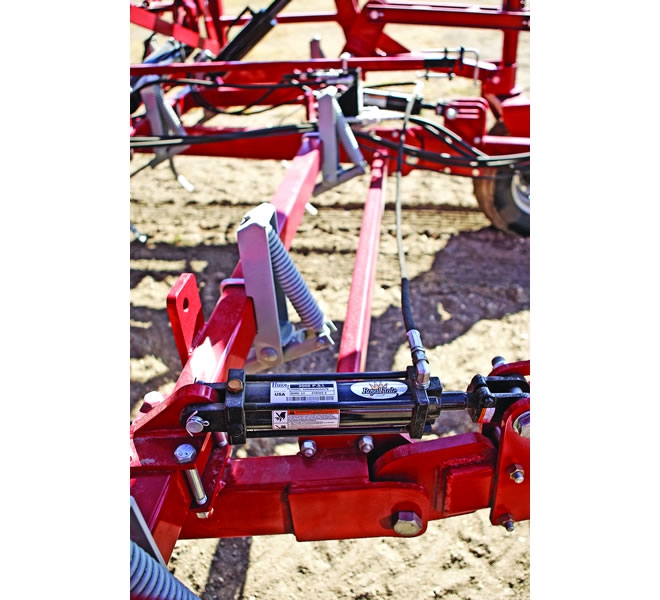

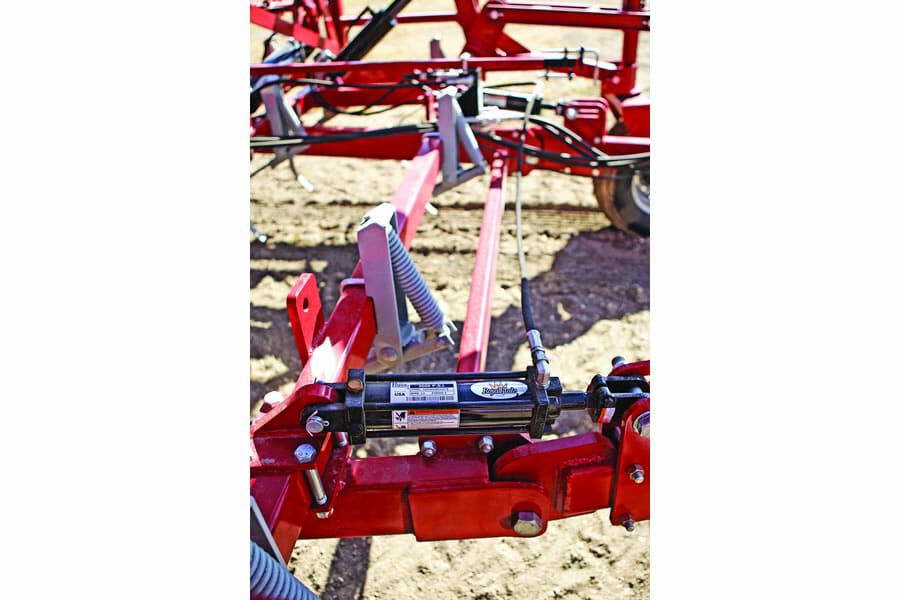

  • Floating hitch in field
  • Rigid lock hitch in transport

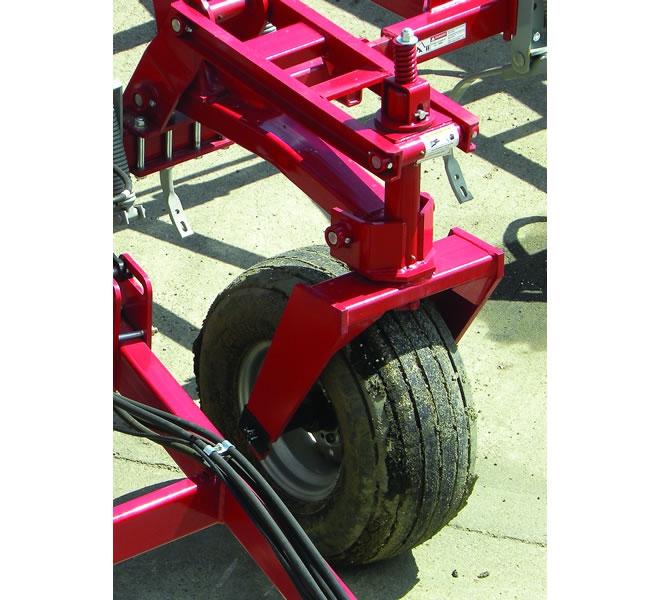

Gauge Wheels
  • Hydraulically-controlled
  • Front-mounted
  • Castering
Axle for Main Frame
  • Walking tandem axles on main frame and wing frames
  • Non-grease axle composite pivots
Tractor Requirements
  • 5-9 hp/foot
Hydraulics
  • Single-point depth control
  • Complete with hoses and fittings
Hitch
  • 13′ (4 m) frame – Cat. IV Tongue for 2″ (5 cm) diameter pin
Edge Formed C-shank
  • Single spring edge-on shank, 200 lb. point pressure
  • Twin spring edge-on shank, 300 lb. point pressure
  • 7-inch shank spacing
Axle for Wings
  • Walking tandem with 12 31 x 13.5 tires on 10″ (25.4 cm) rims
  • 6-bolt hubs with 2″ (5 cm) spindle
  • Nongrease axle composite pivots
Miscellaneous Equipment
  • Safety chain
  • Transport warning light package
  • Screw type hitch jack
  • Depth indicator gauge

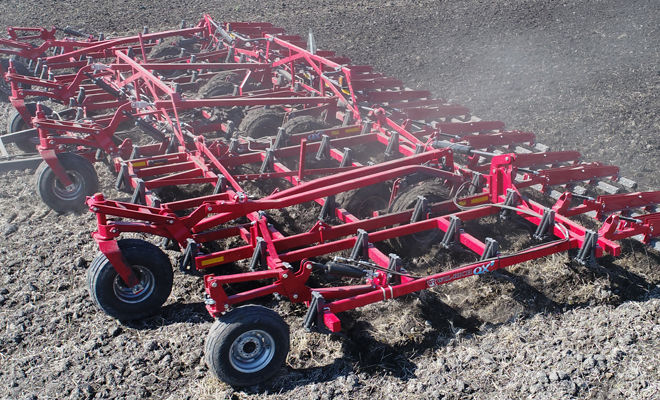

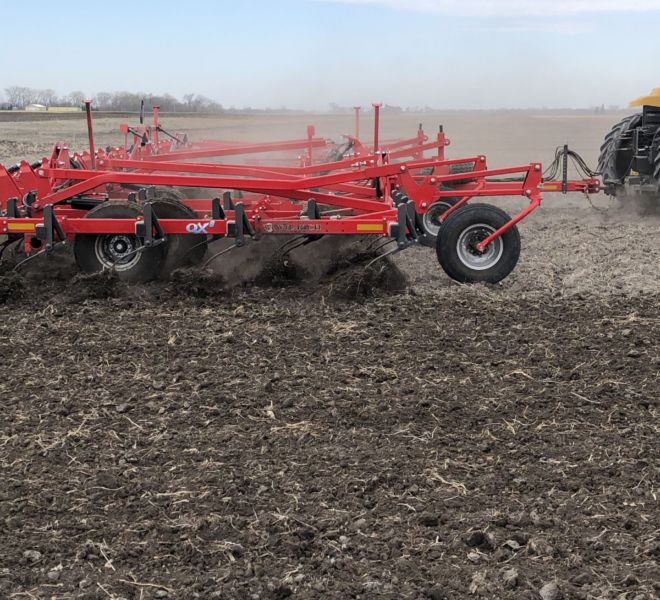

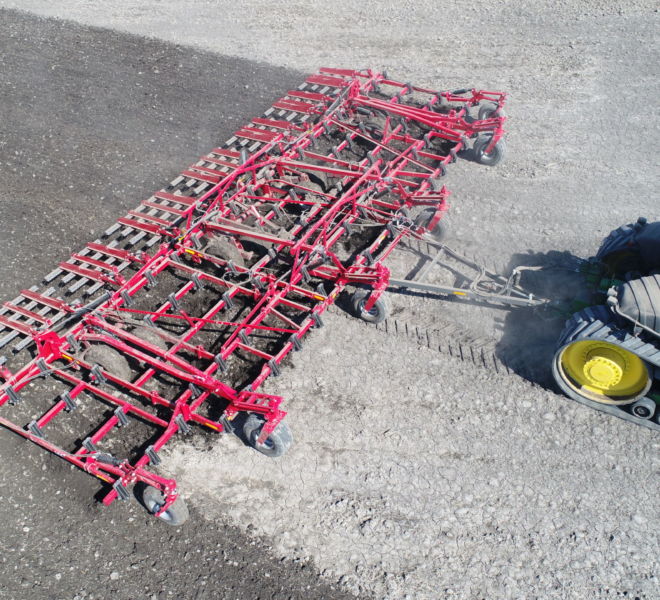

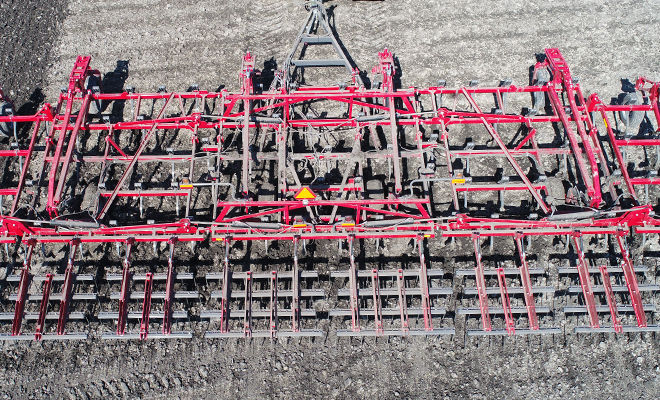

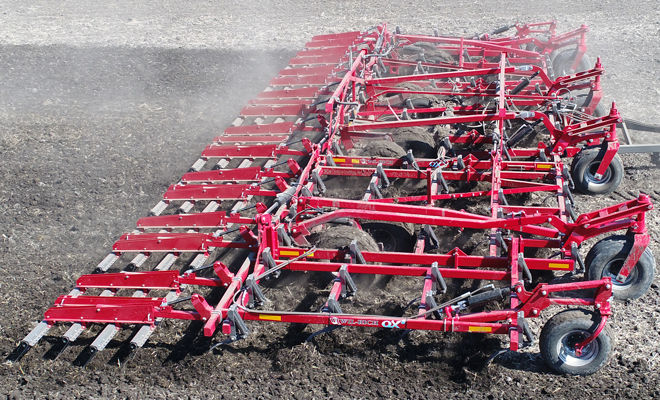

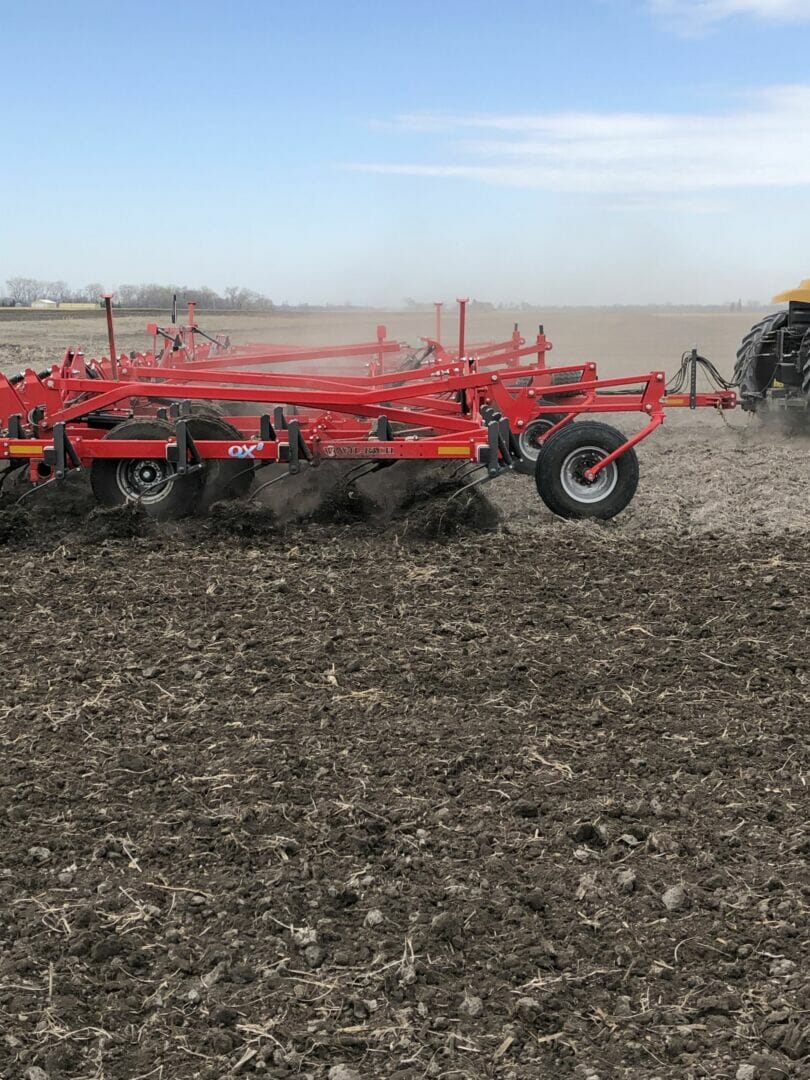

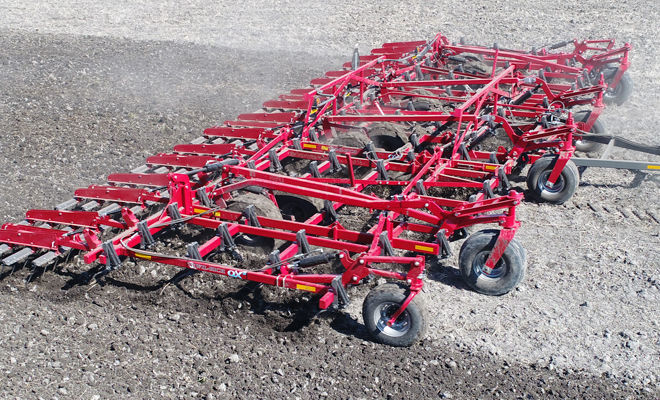

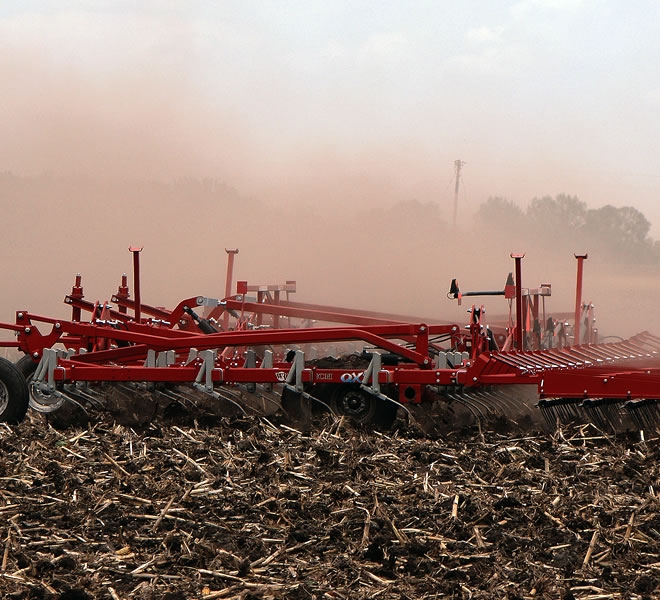

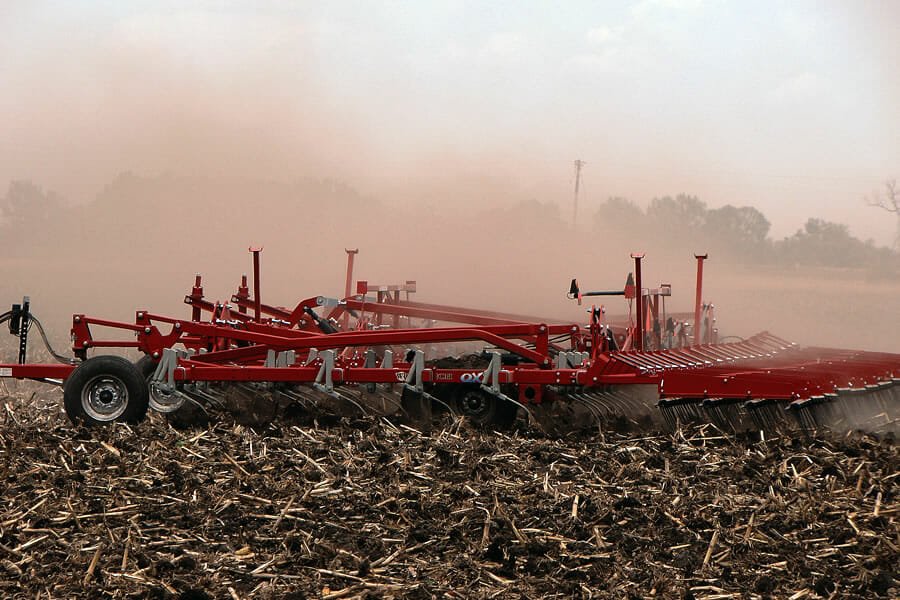

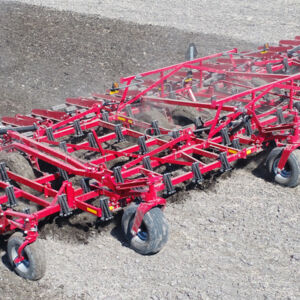

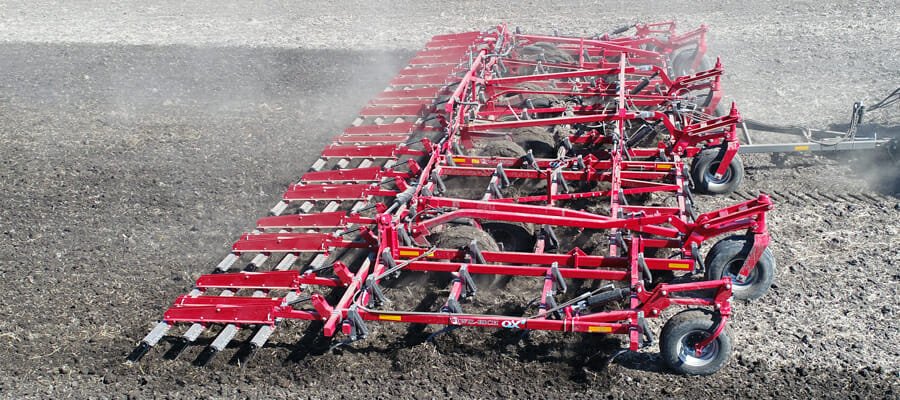

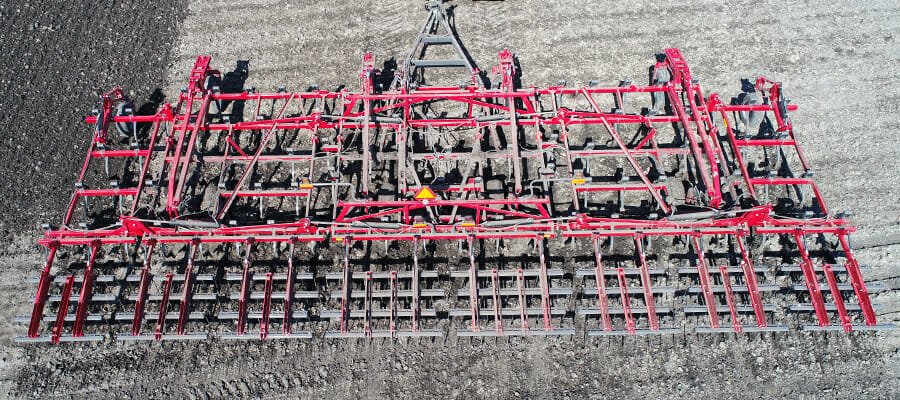

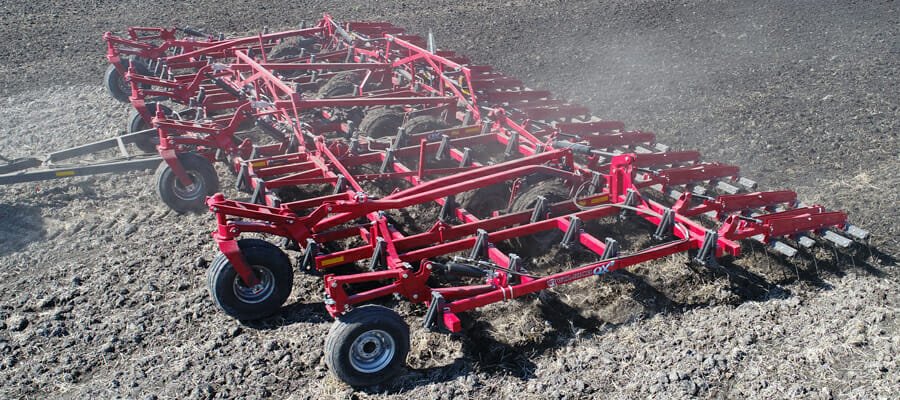

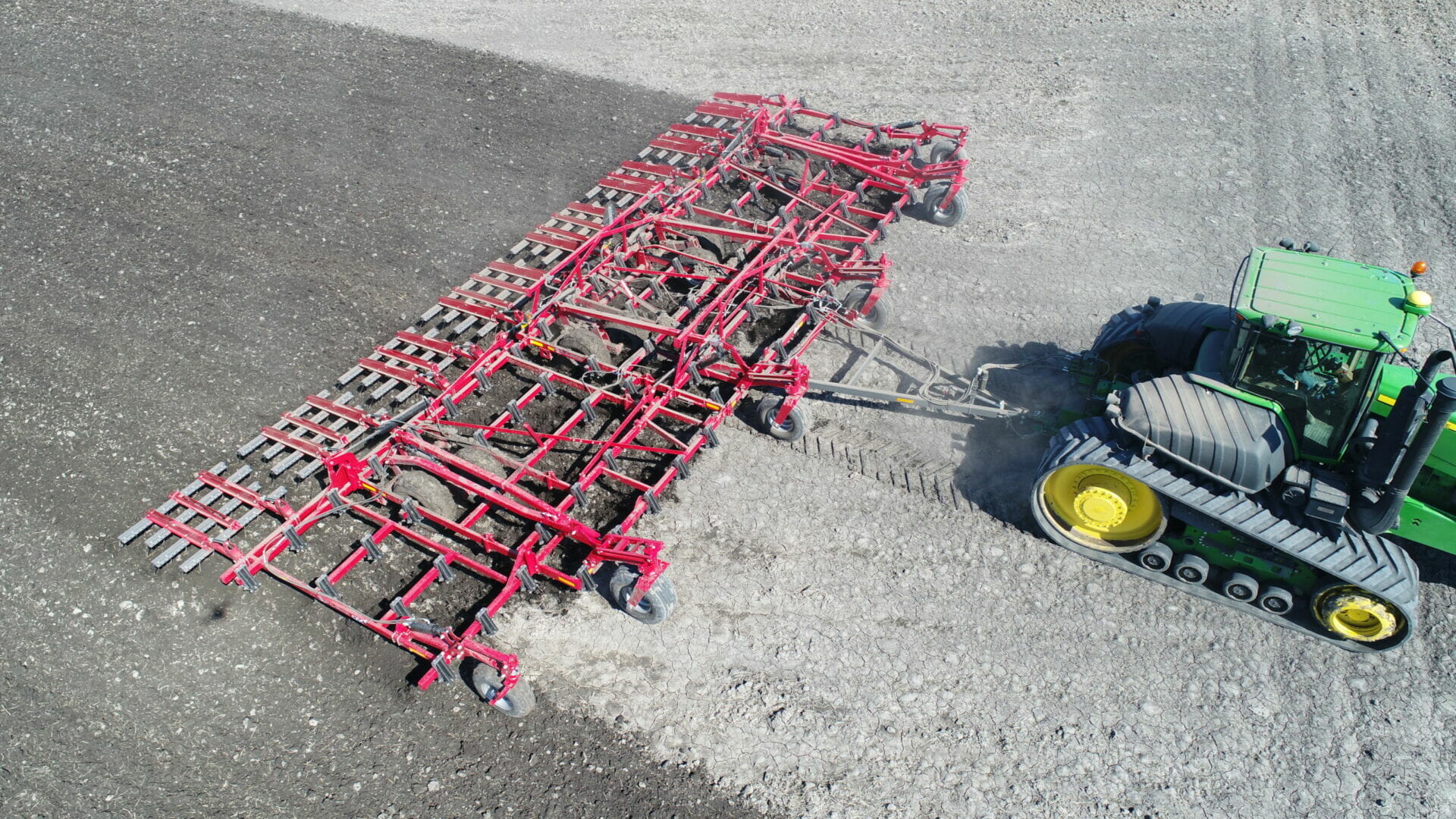

Gallery

General Information, Weights and Dimensions

QX2 Field Cultivator

Model Number
Cut Width
# of Shanks
Inner Wing
Outer Wing
# of Tires
Transport Width
Transport Height
Approx. Weight (lbs.)
Approx. Power Req’d
13QX2 27 27’5″
(8.4 m)
47 7’0″
(2.1 m)
7’0″
(2.1 m)
12 18’5″
(5.6 m)
10’5″
(3.2 m)
11,776
(5,341 kg)
140-245 HP
13QX2 27-30 29’9″
(9.1 m)
51 7’0″
(2.1 m)
7’0″
(2.1 m)
12 18’5″
(5.6 m)
11’7″
(3.5 m)
11,942
(5,417 kg)
210-270 HP

QX2 (Floating Hitch)



Model Number
Cut Width
# of Shanks
Inner Wing
Outer Wing
# of Tires
Transport Width
Transport Height
Approx. Weight (lbs.)
Approx. Power Req’d
13QX2 32 32’1″
(6.4 m)
55 9’4″
(2.8 m)
12 18’5″
(5.6 m)
12’9″
(3.9 m)
12,105
(5,904 kg)
225-290 HP
13QX2 32-34 34’5″
(10.5 m)
59 9’4″
(2.8 m)
12 18’5″
(5.6 m)
13’10”
(4.2 m)
13,212
(5,993 kg)
240-305 HP
13QX2 32-37 36’9″
(11.2 m)
63 9’4″
(2.8 m)
12 18’5″
(5.6 m)
14’11”
(4.5 m)
13,617
(6,177 kg)
260-335 HP
13QX2 32-42 42’7″
(13 m)
73 9’4″
(2.8 m)
5′ 0″
(1.5 m)
14 18’5″
(5.6 m)
13’5″
(4.1 m)
15,279
(6,930 kg)
245-375 HP
13QX2 32-45 44’11”
(13.7 m)
77 9’4″
(2.8 m)
6′ 0″
(1.8 m)
14 18’5″
(5.6 m)
13’5″
(4.1 m)
15,529
(7,044 kg)
315-405 HP
13QX2 37 36’9″
(11.2 m)
63 11’8″
(3.6 m)
12 18’5″
(5.6 m)
14’11”
(4.5 m)
13,870
(6,291 kg)
260-335 HP
13QX2 37-42 42’7″
(13 m)
73 11’8″
(3.6 m)
12 18’5″
(5.6 m)
15’6″
(4.7 m)
15,428
(6,998 kg)
295-375 HP
13QX2 37-47 47’3″
(14.4 m)
81 11’8″
(3.6 m)
5′ 0″
(1.5 m)
14 18’5″
(5.6 m)
15’6″
(4.7 m)
16,075
(7,291 kg)
330-425 HP
13QX2 37-50 49’7″
(15.1 m)
85 11’8″
(3.6 m)
6′ 0″
(1.8 m)
14 18’5″
(5.6 m)
15’6″
(4.7 m)
16,299
(7,393 kg)
350-450 HP
13QX2 46 46’1″
(14 m)
79 9’4″
(2.8 m)
7’0″
(2.1 m)
18 18’5″
(5.6 m)
13’6″
(4.1 m)
19,704
(8,938 kg)
325-415 HP
13QX2 46-48 48’5″
(14.8 m)
83 9’4″
(2.8 m)
7’0″
(2.1 m)
18 18’5″
(5.6 m)
13’6″
(4.1 m)
19,900
(9,026 kg)
335-435 HP
13QX2 46-50 50’9″
(15.5 m)
87 9’4″
(2.8 m)
7’0″
(2.1 m)
18 18’5″
(5.6 m)
13’6″
(4.1 m)
20,140
(9,135 kg)
350-450 HP
13QX2 50 50’9″
(15.5 m)
87 11’8″
(3.6 m)
7’0″
(2.1 m)
18 18’5″
(5.6 m)
15’6″
(4.7 m)
20,598
(9,343 kg)
350-450 HP
13QX2 50-53 53’1″
(16.2 m)
91 11’8″
(3.6 m)
7’0″
(2.1 m)
18 18’5″
(5.6 m)
15’6″
(4.7 m)
20,794
(9,432 kg)
375-475 HP
13QX2 55 55’5″
(16.9 m)
95 11’8″
(3.6 m)
9’4″
(2.8 m)
18 18’5″
(5.6 m)
15’6″
(4.7 m)
21,279
(9,652 kg)
385-495 HP
13QX2 55-58 57’9″
(17.6 m)
99 11’8″
(3.6 m)
9’4″
(2.8 m)
18 18’5″
(5.6 m)
15’6″
(4.7 m)
21,476
(9,741 kg)
410-525 HP
13QX2 55-60 60’1″
(18.3 m)
103 11’8″
(3.6 m)
9’4″
(2.8 m)
18 18’5″
(5.6 m)
15’6″
(4.7 m)
21,715
(9,850 kg)
425-540 HP

Note: Approximate weight = (number of shanks x shank weight) + base weight
