XL2 Field Cultivator

Wil-Rich field cultivators are the industry leaders for strength and performance. Designed for the demands of today’s agriculture. Wil-Rich focuses on its customers – designing tillage tools to meet farmers’ requirements.

The field-proven and time-tested level lift hitch system of the XL2 field cultivator allows for weight transfer to the tractor. Ideal for level fields, the XL2 performs well in heavy residue conditions and creates a seedbed that is planter ready!

Base Specifications

Main Frame
  • 11′ (3.4 m) or 13′ (4 m) main frame
  • 6-bar bolted frame
  • 3 x 4″ (8 x 10 cm) tubular frame
  • 35″ (89 cm) rank-to-rank spacing
  • 140″ (356 cm) front to back
  • Over center wing fold
  • Level lift hitch

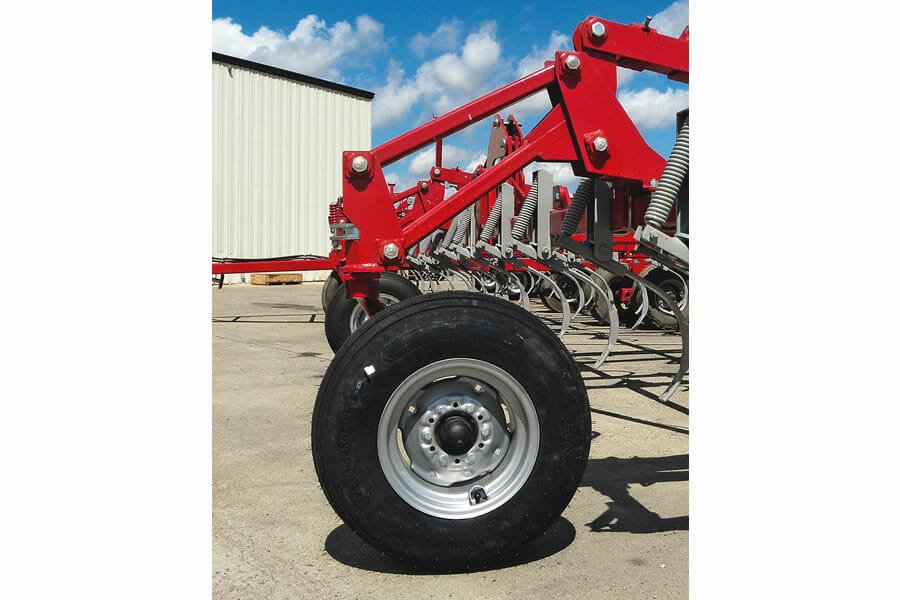

Gauge Wheels
  • Manual adjust on 22′ (6.7 m) models
  • Hydraulically-controlled on 25′ (7.6 m) and larger
  • Front-mounted
  • Castering

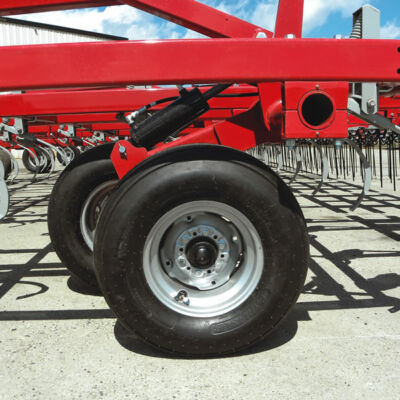

Axle for Main Frame
  • Walking tandem axles on main frame and wing frames on 25′ (7.6 m) and larger
  • Non-grease axle composite pivots
Shank Options
  • Single spring edge-on shank 200 lb. (91 kg) point pressure
  • Twin spring edge-on shank 300 lb.(136 kg) point pressure
  • 7-inch (17.8 cm) shank spacing
Jack
  • Screw type
Hydraulics
  • Single-point depth control
  • Complete with hoses and fittings
Hitch
  • Dual Cat hitch for use with 2″ (5.1 cm) pin
Edge Formed C-shank
  • 200 lb., 9/16 x 1¾” (91 kg, 1.4 x 4.4 cm) extension spring edge-on shank
  • Twin spring, 300 lb. (136 kg) point pressure shank
Axle for Wings
  • Walking tandem with 12 31 x 13.5 tires on 10″ (25.4 cm) rims
  • 6-bolt hubs with 2″ (5 cm) spindle
  • Nongrease axle composite pivots
Miscellaneous Equipment
  • Safety chain
  • Transport warning light package
  • Screw type hitch jack
  • Depth indicator gauge

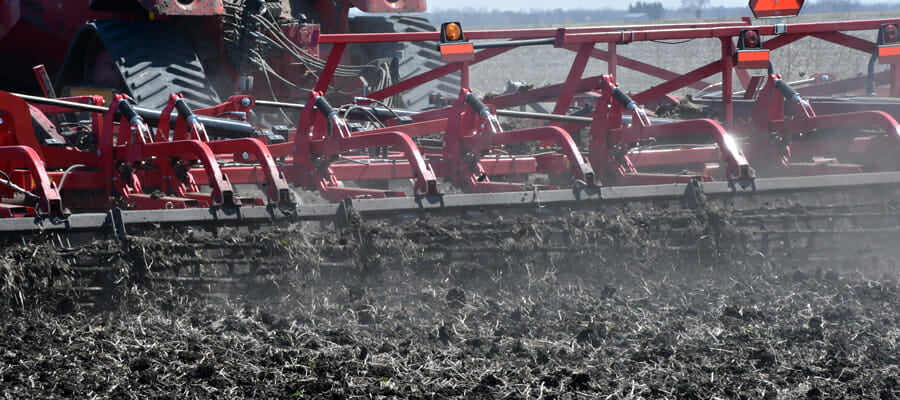

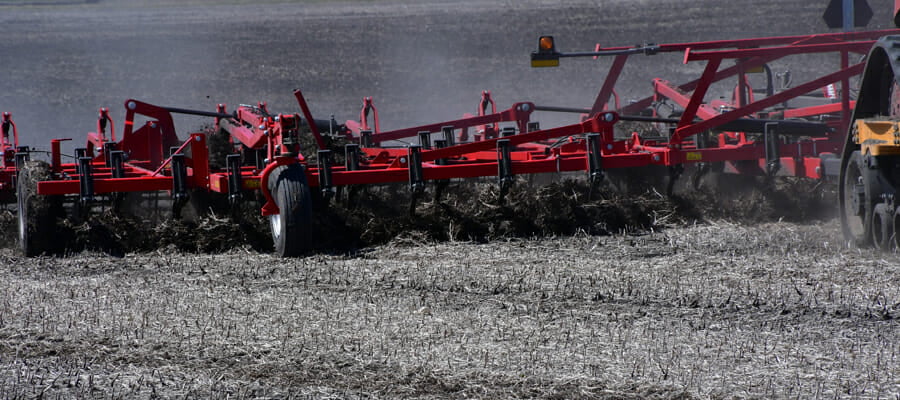

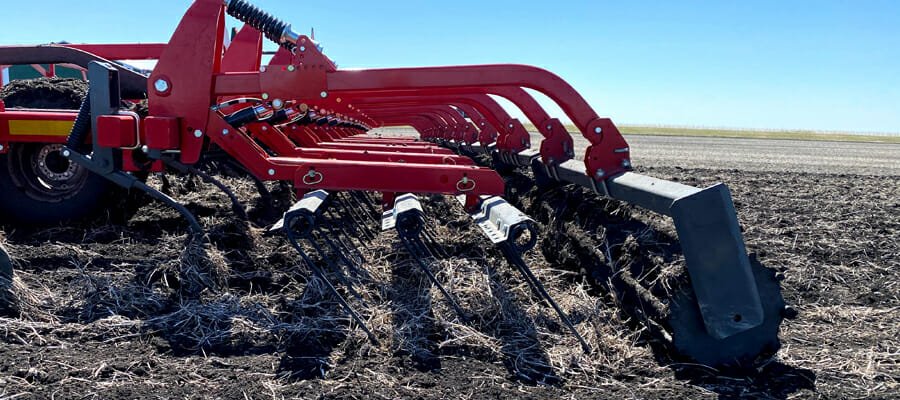

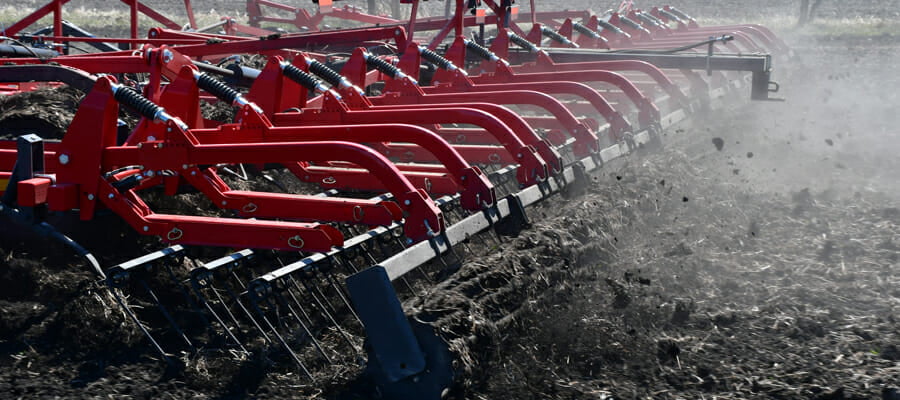

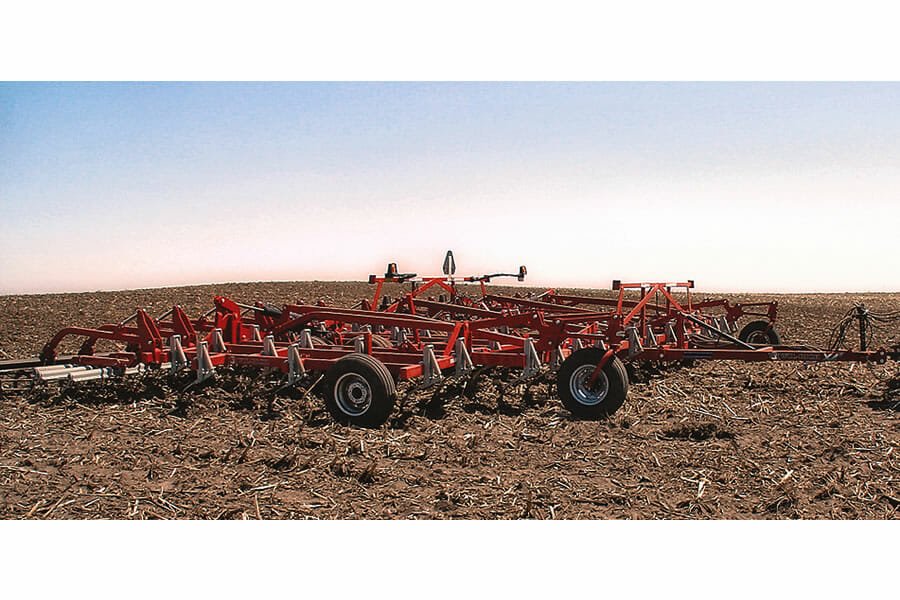

Gallery

General Information, Weights and Dimensions

Model #
Cut Width
# of Shanks
Inner Wing
Outer Wing
# of Tires
Transport Width
Transport Height
Approx. Weight (lbs.)
Approx. Power Req’d
11 XL2 19-22 21’7″ (6.6 m) 37 4’0″ (1.2 m) 4’0″ (1.2 m) 6 16’1″ (4.9 m) 8’7″ (2.6 m) 6,613 (3,000 kg) 155-200 (116-149 kW)
11 XL2 25 25’1″ (7.6 m) 43 7’0″ (2.1 m) 7’0″ (2.1 m) 8 16’1″ (4.9 m) 10’5″ (3.2 m) 8,791 (3,988 kg) 175-225 (131-168 kW)
11XL2 25-27 27’5″ (8.4 m) 47 7’0″ (2.1 m) 7’0″ (2.1 m) 8 16’1″ (4.9 m) 11’7″ (3.5 m) 9,012 (4,088 kg) 193-245 (144-183 kW)
11XL2 25-30 29’9″ (9.1 m) 51 7’0″ (2.1 m) 7’0″ (2.1 m) 8 16’1″ (4.9 m) 12’9″ (3.9 m) 9,397 (4,262 kg) 210-270 (157-201 kW)
11XL2 30 29’9″ (9.1 m) 51 9’4″ (2.8 m) 9’4″ (2.8 m) 10 16’1″ (4.9 m) 12’9″ (3.9 m) 10,886 (4,938 kg) 210-270 (157-201 kW)
11XL2 30-32 32’1″ (6.4 m) 55 9’4″ (2.8 m) 9’4″ (2.8 m) 10 16’1″ (4.9 m) 13’10” (4.2 m) 11,107 (5,038 kg) 225-290 (131-216 kW)
11XL2 30-36 35’7″ (10.8 m) 61 9’4″ (2.8 m) 9’4″ (2.8 m) 10 16’1″ (4.9 m) 12’9″ (3.9 m) 12,439 (5,642 kg) 250-325 (186-242 kW)
11XL2 30-39 39’1″ (11.9 m) 67 9’4″ (2.8 m) 9’4″ (2.8 m) 12 16’1″ (4.9 m) 12’9″ (3.9 m) 13,002 (5,898 kg) 275-350 (205-261 kW)

XL2 (Level Lift Hitch)

Model #
Cut Width
# of Shanks
Inner Wing
Outer Wing
# of Tires
Transport Width
Transport Height
Approx. Weight (lbs.)
Approx. Power Req’d
13XL2/QX2 32 32’1″ (6.4 m) 55 9’4″ (2.8 m) 12-Oct 18’5″ (5.6 m) 12’9″ (3.9 m) 11,706 / 12,691 (5,310 / 5,757 kg) 225-290 (131-216kW)
13XL2/QX2 32-34 34’5″ (10.5 m) 59 9’4″ (2.8 m) 12-Oct 18’5″ (5.6 m) 13’10” (4.2 m) 11,927 / 12,912 (5,410 / 5,857 kg) 240-305 (179-227 kW)
13XL2/QX2 32-37 36’9″ (11.2 m) 63 9’4″ (2.8 m) 12-Oct 18’5″ (5.6 m) 14’11” (4.5 m) 12,312 / 13,296 (5,585 / 6,031 kg) 260-335 (194-250 kW)
13XL2/QX2 32-42 42’7″ (13 m) 73 9’4″ (2.8 m) 5′ 0″(1.5 m) 14-Dec 18’5″ (5.6 m) 13’5″ (4.1 m) 13,818 / 14,801 (6,268/6,714 kg) 245-375 (183-280 kW)
13XL2/QX2 32-45 44’11” (13.7 m) 77 9’4″ (2.8 m) 6′ 0″ (1.8 m) 14-Dec 18’5″ (5.6 m) 13’5″ (4.1 m) 14,106 / 15,089 (6,398 / 6,844 kg) 315-405 (235-302 kW)
13XL2/QX2 37 36’9″ (11.2 m) 63 11’8″ (3.6 m) 12-Oct 18’5″ (5.6 m) 14’11” (4.5 m) 12,604 / 13,584 (5,717 / 6,162 kg) 260-335 (194-250 kW)
13XL2/QX2 37-42 42’7″ (13 m) 73 11’8″ (3.6 m) 12-Oct 18’5″ (5.6 m) 15’6″ (4.7 m) 13,710 / 15,142 (6,219 / 6,868 kg) 295-375 (220-280 kW)
13XL2/QX2 37-47 47’3″ (14.4 m) 81 11’8″ (3.6 m) 5′ 0″(1.5 m) 14-Dec 18’5″ (5.6 m) 15’6″ (4.7 m) 14,715 / 15,695 (6,675 / 7,119 kg) 330-425 (246-317 kW)
13XL2/QX2 37-50 49’7″ (15.1 m) 85 11’8″ (3.6 m) 6′ 0″ (1.8 m) 14-Dec 18’5″ (5.6 m) 15’6″ (4.7 m) 15,003 / 15,982 (6,805 / 7,249 kg) 350-450 (261-336 kW)
13XL2/QX2 46 46’1″ (14 m) 79 9’4″ (2.8 m) 7’0″ (2.1 m) 16/18 18’5″ (5.6 m) 13’6″ (4.1 m) 18,801 / 19,495 (8,528 / 8,843 kg) 325-415 (242-310 kW)
13XL2/QX2 46-48 48’5″ (14.8 m) 83 9’4″ (2.8 m) 7’0″ (2.1 m) 16/18 18’5″ (5.6 m) 13’6″ (4.1 m) 19,022 / 19,716 (8,628 / 8,943 kg) 335-435 (250-324 kW)
13XL2/QX2 46-50 50’9″ (15.5 m) 87 9’4″ (2.8 m) 7’0″ (2.1 m) 16/18 18’5″ (5.6 m) 13’6″ (4.1 m) 19,262 / 19,980 (8,737 / 9,063 kg) 350-450 (261-336 kW)
13XL2/QX2 50 50’9″ (15.5 m) 87 11’8″ (3.6 m) 7’0″ (2.1 m) 16/18 18’5″ (5.6 m) 15’6″ (4.7 m) 19,637 / 20,330 (8,907 / 9,222 kg) 350-450 (261-336 kW)
13XL2/QX2 50-53 53’1″ (16.2 m) 91 11’8″ (3.6 m) 7’0″ (2.1 m) 16/18 18’5″ (5.6 m) 15’6″ (4.7 m) 19,858 / 20,551 (9,007 / 9,322 kg) 375-475 (280-354 kW)
13XL2/QX2 55 55’5″ (16.9 m) 95 11’8″ (3.6 m) 9’4″ (2.8 m) 16/18 18’5″ (5.6 m) 15’6″ (4.7 m) 20,286 / 20,979 (9,202 / 9,516 kg) 385-495 (287-367 kW)
13XL2/QX2 55-58 57’9″ (17.6 m) 99 11’8″ (3.6 m) 9’4″ (2.8 m) 16/18 18’5″ (5.6 m) 15’6″ (4.7 m) 20,507 / 21,200 (9,302 / 9,616 kg) 410-525 (306-392 kW)
13XL2/QX2 55-60 60’1″ (18.3 m) 103 11’8″ (3.6 m) 9’4″ (2.8 m) 16/18 18’5″ (5.6 m) 15’6″ (4.7 m) 20,772 / 21,465 (9,422 / 9,736 kg) 425-540 (317-403 kW)
