Wil-Rich cultivators are the industry leaders for strength and performance. Designed for the demands of today’s agriculture, Wil-Rich focuses on its customers – designing tillage tools to meet farmers’ requirements.

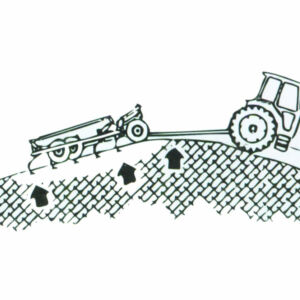

The Wil-Rich QX2 field cultivator is equipped with a floating hitch to provide accurate depth control in uneven terrain.  The QX2 also utilizes optional 31 x 13.5 x 15 flotation tires to enhance flotation in all field conditions.

Base Specifications

Main Frame
  • 13′ (3.96 m) main frame
  • 6-bar bolted frame
  • 3 x 4″ (8 x 10 cm) tubular frame
  • 35″ (89 cm) between five ranks
  • 140″ (356 cm) front to back
  • Floating hitch in field
  • Rigid lock hitch in transport

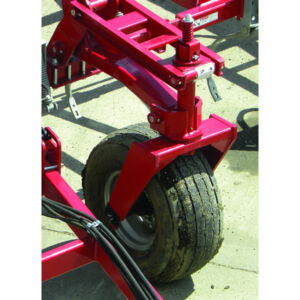

Gauge Wheels
  • Hydraulically-controlled
  • Front-mounted
  • Castering
Axle for Main Frame
  • Walking tandem axles on main frame and wing frames
  • Non-grease axle composite pivots
Tractor Requirements
  • 5-9 hp/foot
Hydraulics
  • Single-point depth control
  • Complete with hoses and fittings
Hitch
  • Dual cat hitch for use with 2-inch pin
Edge Formed C-shank
  • Single spring edge-on shank, 200 lb. point pressure
  • Twin spring edge-on shank, 300 lb. point pressure
  • 7-inch shank spacing
Axle for Wings
  • Walking tandem with 12 31 x 13.5 tires on 10″ (25.4 cm) rims
  • 6-bolt hubs with 2″ (5 cm) spindle
  • Nongrease axle composite pivots
Miscellaneous Equipment
  • Safety chain
  • Transport warning light package
  • Screw type hitch jack
  • Depth indicator gauge

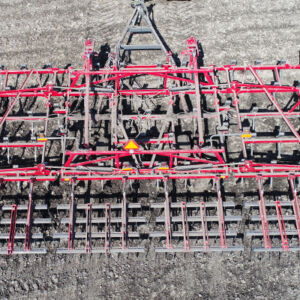

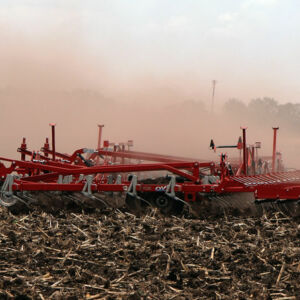

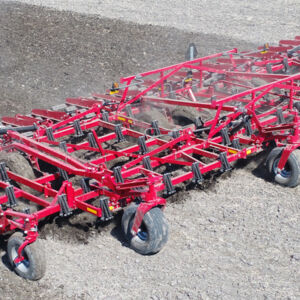

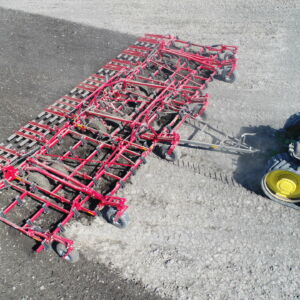

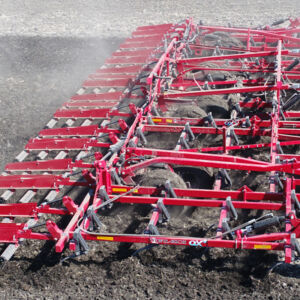

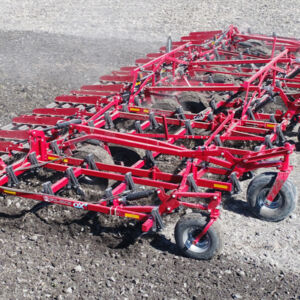

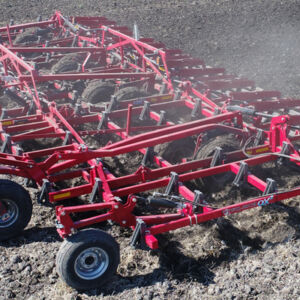

Gallery

General Information, Weights and Dimensions

QX2 Field Cultivator

Model #
Cut Width
# of Shanks
Inner Wing
Outer Wing
# of Tires
Transport Width
Transport Height
Approx. Weight (lbs.)
Approx. Power Req’d
13QX2 27 27’5″ (8.4 m) 47 7’0″ (2.1 m) 7’0″ (2.1 m) 12 18’5″ (5.6 m) 10’5″ (3.2 m) 11,153 (5,059 kg) 140-245 (104-183 kW)
13QX2 27-30 29’9″ (9.1 m) 51 7’0″ (2.1 m) 7’0″ (2.1 m) 12 18’5″ (5.6 m) 11’7″ (3.5 m) 11,611 (5,267 kg) 210-270 (157-201 kW)

QX2 (Floating Hitch)

Model #
Cut Width
# of Shanks
Inner Wing
Outer Wing
# of Tires
Transport Width
Transport Height
Approx. Weight (lbs.)
Approx. Power Req’d
13XL2/QX2 32 32’1″ (6.4 m) 55 9’4″ (2.8 m) 12-Oct 18’5″ (5.6 m) 12’9″ (3.9 m) 11,706 / 12,691 (5,310 / 5,757 kg) 225-290 (131-216kW)
13XL2/QX2 32-34 34’5″ (10.5 m) 59 9’4″ (2.8 m) 12-Oct 18’5″ (5.6 m) 13’10” (4.2 m) 11,927 / 12,912 (5,410 / 5,857 kg) 240-305 (179-227 kW)
13XL2/QX2 32-37 36’9″ (11.2 m) 63 9’4″ (2.8 m) 12-Oct 18’5″ (5.6 m) 14’11” (4.5 m) 12,312 / 13,296 (5,585 / 6,031 kg) 260-335 (194-250 kW)
13XL2/QX2 32-42 42’7″ (13 m) 73 9’4″ (2.8 m) 5′ 0″(1.5 m) 14-Dec 18’5″ (5.6 m) 13’5″ (4.1 m) 13,818 / 14,801 (6,268/6,714 kg) 245-375 (183-280 kW)
13XL2/QX2 32-45 44’11” (13.7 m) 77 9’4″ (2.8 m) 6′ 0″ (1.8 m) 14-Dec 18’5″ (5.6 m) 13’5″ (4.1 m) 14,106 / 15,089 (6,398 / 6,844 kg) 315-405 (235-302 kW)
13XL2/QX2 37 36’9″ (11.2 m) 63 11’8″ (3.6 m) 12-Oct 18’5″ (5.6 m) 14’11” (4.5 m) 12,604 / 13,584 (5,717 / 6,162 kg) 260-335 (194-250 kW)
13XL2/QX2 37-42 42’7″ (13 m) 73 11’8″ (3.6 m) 12-Oct 18’5″ (5.6 m) 15’6″ (4.7 m) 13,710 / 15,142 (6,219 / 6,868 kg) 295-375 (220-280 kW)
13XL2/QX2 37-47 47’3″ (14.4 m) 81 11’8″ (3.6 m) 5′ 0″(1.5 m) 14-Dec 18’5″ (5.6 m) 15’6″ (4.7 m) 14,715 / 15,695 (6,675 / 7,119 kg) 330-425 (246-317 kW)
13XL2/QX2 37-50 49’7″ (15.1 m) 85 11’8″ (3.6 m) 6′ 0″ (1.8 m) 14-Dec 18’5″ (5.6 m) 15’6″ (4.7 m) 15,003 / 15,982 (6,805 / 7,249 kg) 350-450 (261-336 kW)
13XL2/QX2 46 46’1″ (14 m) 79 9’4″ (2.8 m) 7’0″ (2.1 m) 16/18 18’5″ (5.6 m) 13’6″ (4.1 m) 18,801 / 19,495 (8,528 / 8,843 kg) 325-415 (242-310 kW)
13XL2/QX2 46-48 48’5″ (14.8 m) 83 9’4″ (2.8 m) 7’0″ (2.1 m) 16/18 18’5″ (5.6 m) 13’6″ (4.1 m) 19,022 / 19,716 (8,628 / 8,943 kg) 335-435 (250-324 kW)
13XL2/QX2 46-50 50’9″ (15.5 m) 87 9’4″ (2.8 m) 7’0″ (2.1 m) 16/18 18’5″ (5.6 m) 13’6″ (4.1 m) 19,262 / 19,980 (8,737 / 9,063 kg) 350-450 (261-336 kW)
13XL2/QX2 50 50’9″ (15.5 m) 87 11’8″ (3.6 m) 7’0″ (2.1 m) 16/18 18’5″ (5.6 m) 15’6″ (4.7 m) 19,637 / 20,330 (8,907 / 9,222 kg) 350-450 (261-336 kW)
13XL2/QX2 50-53 53’1″ (16.2 m) 91 11’8″ (3.6 m) 7’0″ (2.1 m) 16/18 18’5″ (5.6 m) 15’6″ (4.7 m) 19,858 / 20,551 (9,007 / 9,322 kg) 375-475 (280-354 kW)
13XL2/QX2 55 55’5″ (16.9 m) 95 11’8″ (3.6 m) 9’4″ (2.8 m) 16/18 18’5″ (5.6 m) 15’6″ (4.7 m) 20,286 / 20,979 (9,202 / 9,516 kg) 385-495 (287-367 kW)
13XL2/QX2 55-58 57’9″ (17.6 m) 99 11’8″ (3.6 m) 9’4″ (2.8 m) 16/18 18’5″ (5.6 m) 15’6″ (4.7 m) 20,507 / 21,200 (9,302 / 9,616 kg) 410-525 (306-392 kW)
13XL2/QX2 55-60 60’1″ (18.3 m) 103 11’8″ (3.6 m) 9’4″ (2.8 m) 16/18 18’5″ (5.6 m) 15’6″ (4.7 m) 20,772 / 21,465 (9,422 / 9,736 kg) 425-540 (317-403 kW)
