357 Inline Ripper

The Wil-Rich 357 Inline Ripper is ideal for heavy residue conditions. Built rugged, solid and strong, the 357 Inline Ripper will penetrate even the hardest ground. The shanks on this field-proven design are available in rigid or spring reset options with parabolic or minimal disturbance shanks.

Features

Main Frame
  • 4″ x 6″ x ⅜” (10.1 x 15.2 m x 1 cm) tubular frame
Wheels
  • Walking tandem wheels
Gauge Wheels
  • Quick adjust lock pin design with 20.5 x 10 10-ply tires
Safety Equipment
  • Transport warning lights
Shank Working Depth
  • Parabolic – 16” (41 cm) maximum
  • Minimal disturbance – 16” (41 cm) maximum
  • Trip height – 16” (41 cm)

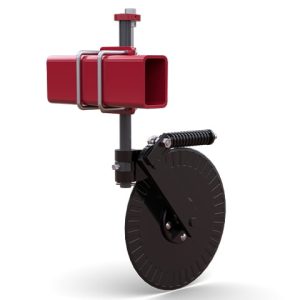

  • Coulters – 6” (15 cm) maximum

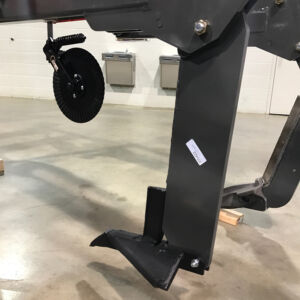

Shanks
  • Available with 4, 5, 6, 7, 8, and 12 shanks
  • Spacing: 30″ (76 cm)

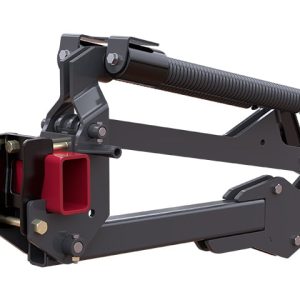

  • 4,250 lb. (1.9 t) twin spring reset shank holder
  • Optional 12″ (30.5 cm) shank staggering bracket

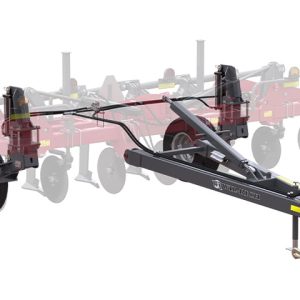

Hitch
  • Pull type with hinged tongue using a 2” (5 cm) draw pin – connects to 3-point
Specifications
  • Under frame clearance: 35” (89 cm)
  • Operating speed: 4½ – 6 mph (7 – 9 kph)
  • HP (PTO) per shank: 35 – 50 (26.1 – 37.3 kw)

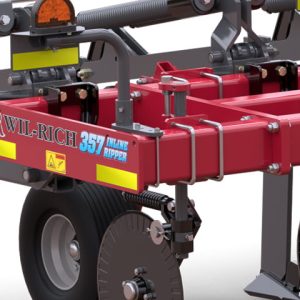

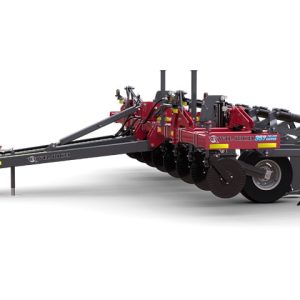

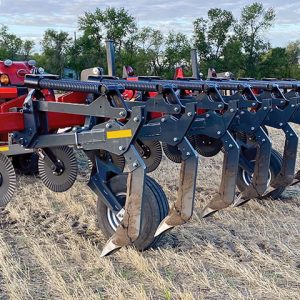

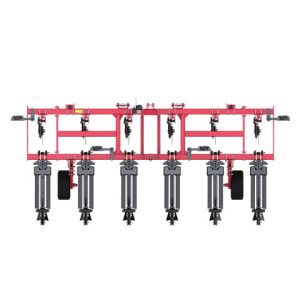

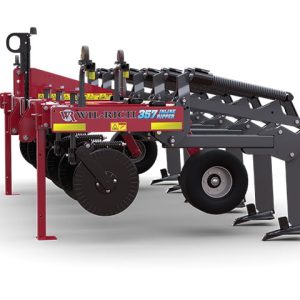

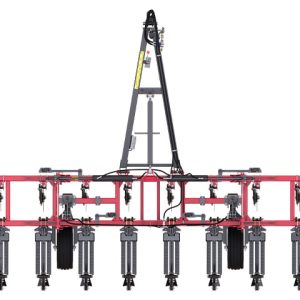

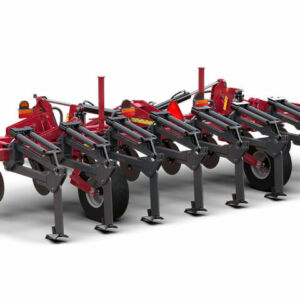

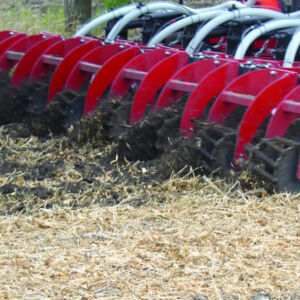

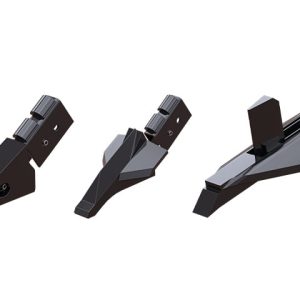

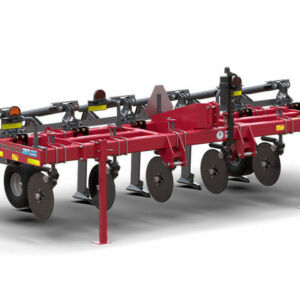

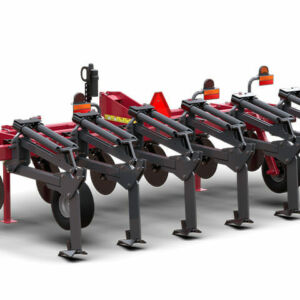

Gallery

Specifications

3-Point Mounted Rigid
Model Number
Shank Spacing
Working Width
Shanks Needed
Transport Width
Transport Height
Approx. Weight lbs.
3-5 3-Pt. 30 30″ (76 cm) 12.5′ (3.8 m) 5 10’10” (3.3 m) 1,222 (554.3 kg)
5 3-Pt. 30 30″ (76 cm) 12.5′ (3.8 m) 5 10’10” (3.3 m) 1,190 (539.8 kg)
5-7 3-Pt. 30 30″ (76 cm) 17.5′ (5.3 m) 7 16’2″ (4.9 m) 1,875 (850.8 kg)
4 3-Pt. 30 30″ (76 cm) 10.0′ (3 m) 4 10’10” (3.3 m) 1,190 (539.8 kg)
4-6 3-Pt. 30 30″ (76 cm) 15.0′ (4.6 m) 6 14’4″ (4.4 m) 1,529 (693.5 kg)
8 3-Pt. 30 30″ (76 cm) 20.0′ (6.1 m) 8 20’2″ (6.1 m) 1,840 (834.6 kg)

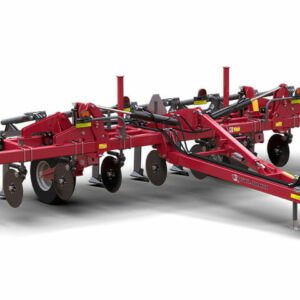

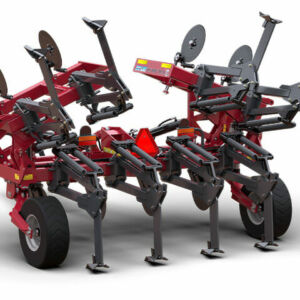

Folding Models
Model Number
Shank Spacing
Working Width
Shanks Needed
Transport Width
Transport Height
Approx. Weight lbs.
8 3-Pt. 30 30″ (76 cm) 20.0′ (6.1 m) 8 12’0″ (3.7 m) 11’0″ (3.4 m) 2,598 (1178.4 kg)
Folding Over Models
Model Number
Shank Spacing
Working Width
Shanks Needed
Transport Width
Transport Height
Approx. Weight lbs.
12 Pull 30 30″ (76 cm) 30.0′ (9.1 m) 12 16’5″ (4.6 m) 15’0″ (4.6 m) 6,862 (3112.6 kg)
